BESANTEK CIRCUIT BREAKER IDENTIFIER (Model: BST-CBF01)
السعر العادي
550.00 SR
لم نتمكن من تحميل توفر الاستلام
Use this text to encourage communication or promote sharing on social networks.

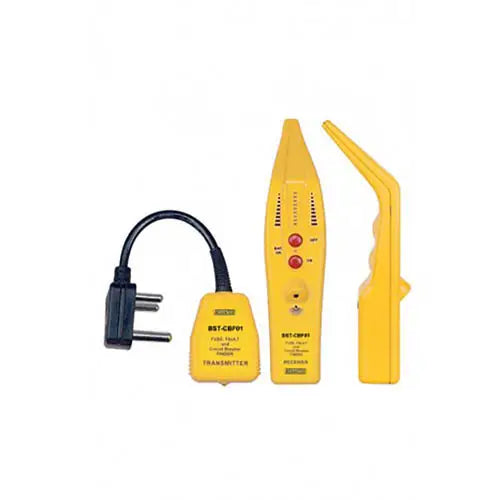

The BESANTEK Circuit Breaker Identifier is a specialized tool designed to help locate and identify circuit breakers, fuses, and faulty circuits. It consists of a transmitter and a receiver, allowing for efficient detection of electrical faults.
Features
- Signal Detection: The transmitter draws current from the mains supply circuit and emits a signal at approximately 10kHz, which the receiver detects.
- Visual and Audio Indicators: The strength of the received signal is indicated through a bar graph of LEDs and an audible buzzer.
- Low Power Consumption: Designed for energy efficiency, making it lightweight and compact.
- Auto-Off Function: Automatically turns off to conserve battery life.
- Included Accessories: Comes with an instruction manual, soft pouch, and battery.
Specifications
| Specification | Details |
|---|---|
| Model No | BST-CBF01 |
| Receiver Tuner Circuit Mid Frequency | 10kHz |
| Bar Graph LEDs | 9 LEDs |
| Battery Indicator LED | 1 |
| OFF/ON Button | 1 |
| Buzzer | 1 |
| Auto-Off (min) | Approx. 1 |
| Material | Polycarbonate/ABS |
| Working Voltage | 110 to 240 Vac (50/60Hz) |
| Input Current | 35mA |
| Operating Temperature | 1°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Power Source | Receiver: 9V battery x 1 |
| Dimensions | Receiver: 200 (L) x 50 (W) x 40 (D) mm |
| Weight | Receiver: Approx. 112g (battery included) |
