BESANTEK Digital Insulation Tester 1KV (Model: BST-IT11)
السعر العادي
784.11 SR
لم نتمكن من تحميل توفر الاستلام
Use this text to encourage communication or promote sharing on social networks.

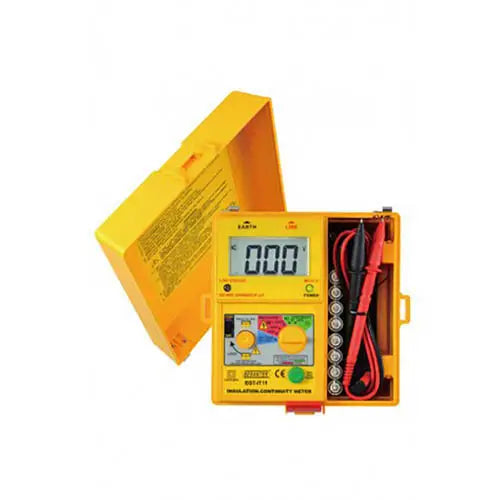

The BESANTEK Digital Insulation Tester BST-IT11 is designed to evaluate wires and cables for proper insulation tolerances. This device is essential for ensuring the safety and reliability of electrical installations.
Features
- Measures insulation, continuity, and AC voltage.
- Offers three insulation test voltages: 250V, 500V, and 1000V.
- Equipped with a large 68 x 34 mm (2.677 x 1.338) LCD display with 2000 counts.
- Automatic circuit discharge feature for safety.
- Tests insulation at rated voltage into a 1mA load.
- Provides a 210mA short circuit testing current for continuity.
- External voltage warning indication and fuse protection.
- Complies with BS 16th edition standards.
- Comes with accessories including an instruction manual, test leads, shoulder belt, fuse (0.5A 250V), and batteries.
Specifications
| Specification | Details |
|---|---|
| Model No | BST-IT11 |
| Insulation Resistance | 0 |
| Resolution | 1 count/100kΩ (250V), 1 count/1MΩ (500V) |
| Accuracy | (1.5%rdg + 5dgt) for 250V, (3%rdg + 3dgt) for 500V, (5%rdg + 3dgt) for 1000V |
| Continuity Measuring Range | 0 |
| AC Voltage Range | 0~500V AC |
| Power Source | 1.5V (AA) x 8 |
| Dimensions | 170 (L) x 165 (W) x 92 (D) mm |
| Weight | Approx. 1040g (battery included) |
