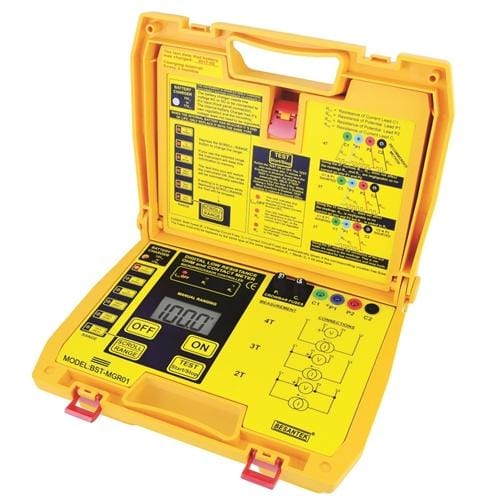

BESANTEK DIGITAL LOW RESISTANCE OHM METER (Model: BST-MGR01)
السعر العادي
6,355.00 SR
لم نتمكن من تحميل توفر الاستلام
Use this text to encourage communication or promote sharing on social networks.
The BESANTEK Digital Low Resistance Ohm Meter is a professional-grade instrument designed for accurately measuring very low resistance values. It is particularly useful in applications requiring precise resistance measurements, such as electrical testing and maintenance.
Features
- Microprocessor Controlled: Ensures high accuracy and reliability in measurements.
- Measurement Ranges: Offers six ranges from 2.000mΩ to 200.0Ω.
- Maximum Resolution: Achieves a resolution of 1μΩ.
- Test Currents: Provides three test currents with over-temperature protection.
- Four Terminal Measurement: Reduces the impact of lead resistance on measurements.
- Protection Features: Includes safeguards against inadvertent connections to over-voltage.
- Clear LCD Display: Large and easy-to-read display for clear visibility of measurements.
- EnerSave Features: Includes auto-hold and auto-off functions to conserve battery life.
- Robust Design: O-ring sealed case for durability in various environments.
Specifications
| Specification | Details |
|---|---|
| Model No | BST-MGR01 |
| Low Resistance Ranges | 0-2.000mΩ, 0-20.00mΩ, 0-200.0mΩ, 0-2.000Ω, 0-20.00Ω, 0-200.0Ω |
| Accuracy | 0-2.000mΩ: (5%rdg + 5dgt), 0-20.00mΩ: (4%rdg + 4dgt), 0-200.0mΩ: (4%rdg + 4dgt) |
| Test Current | 2.000mΩ to 200.0mΩ: 1A ±3%, 200.0mΩ to 20.0Ω: 100mA ±2%, 200.0Ω: 10mA ±1.5% |
| Max Output Voltage | 10V |
| Power Source | Rechargeable battery |
| Dimensions | 330 (L) x 260 (W) x 160 (D) mm |
| Weight | Approx. 3200g (battery included) |
