BESANTEK DIGITAL MULTIMETER AND ROTATION TESTER (Model: BST-MT707)
السعر العادي
679.39 SR
لم نتمكن من تحميل توفر الاستلام
Use this text to encourage communication or promote sharing on social networks.

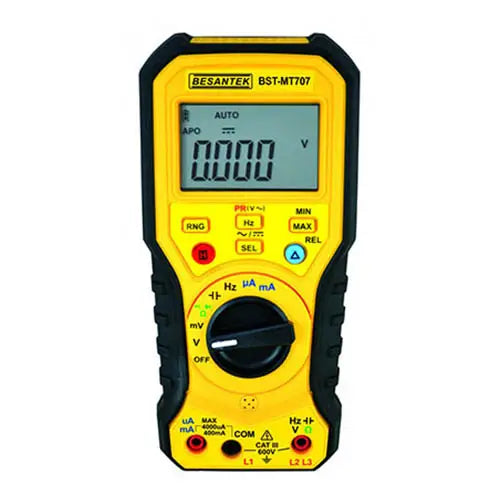

The BESANTEK Digital Multimeter and Phase Rotation Tester BST-MT707 is a versatile instrument designed to measure AC/DC voltage, current, frequency, capacitance, resistance, diode, phase rotation, and continuity. It is particularly useful for electricians and technicians working with electrical systems.
Features
- 4000-count LCD: Provides clear and precise readings.
- Auto Ranging: Automatically selects the appropriate measurement range.
- Wide Voltage Measurement: Measures AC voltage from 80 to 750VAC and DC voltage up to 1000V.
- Resistance Measurement: Can measure resistance/insulation up to 200.0MΩ.
- Phase Rotation Indication: Displays clockwise and counter-clockwise rotation on the LCD.
- Capacitance Testing: Wide range for capacitance tests from 0 to 40.00mF.
- Frequency Measurement: Measures frequencies up to 40.00MHz.
- Data Hold Function: Freezes the current reading for easy reference.
- Low Battery Warning Indicator: Alerts users when battery power is low.
- Auto Power Off: Conserves battery life by turning off the device after a period of inactivity.
Specifications
| Specification | Details |
|---|---|
| Model No | BST-MT707 |
| DC Voltage Range | 400mV, 4V, 40V, 400V, 1000V |
| AC Voltage Range | 400mV, 4V, 40V, 400V, 750V |
| DC Current Range | 400mA, 40mA, 4000A, 400A |
| AC Current Range | 400mA, 40mA, 4000A, 400A |
| Resistance Range | 200MΩ, 40MΩ, 4MΩ, 400kΩ, 40kΩ, 4kΩ |
| Capacitance Range | 40.00mF, 4.00mF, 400μF, 40μF, 4μF |
| Frequency Range | 40MHz, 4MHz, 400kHz, 40kHz, 4kHz |
| Dimensions | 188 (L) x 90 (W) x 54 (D) mm |
| Weight | Approx. 346g (battery included) |
