Extech PQ3450-30 3000A Datalogging Power Analyzer Kit
السعر العادي
9,500.00 SR
لم نتمكن من تحميل توفر الاستلام
Use this text to encourage communication or promote sharing on social networks.
The Extech PQ3450-30 is a sophisticated 3-phase power analyzer and data logger designed for high power distribution systems. It can log up to 30,000 sets of measurements in Excel format on a removable SD memory card, making it an essential tool for electrical engineers and technicians.
Features
- Large Display: Features a large dot-matrix, sun-readable, numerical, backlit LCD with an easy-to-use onscreen menu.
-
Comprehensive Analysis: Capable of full system analysis with up to 35 parameters, including:
- Voltage (phase-to-phase and phase-to-ground)
- Current (phase-to-phase)
- Active power, apparent power, reactive power, and power factor
- Adjustable Ratios: Supports adjustable Current Transformer (CT) ratios from 1 to 600 and Potential Transformer (PT) ratios from 1 to 1000.
- Wide Sampling Rate: Offers a sampling rate range from 2 seconds to 2 hours.
- Built-in Clock and Calendar: Facilitates time-stamped data logging.

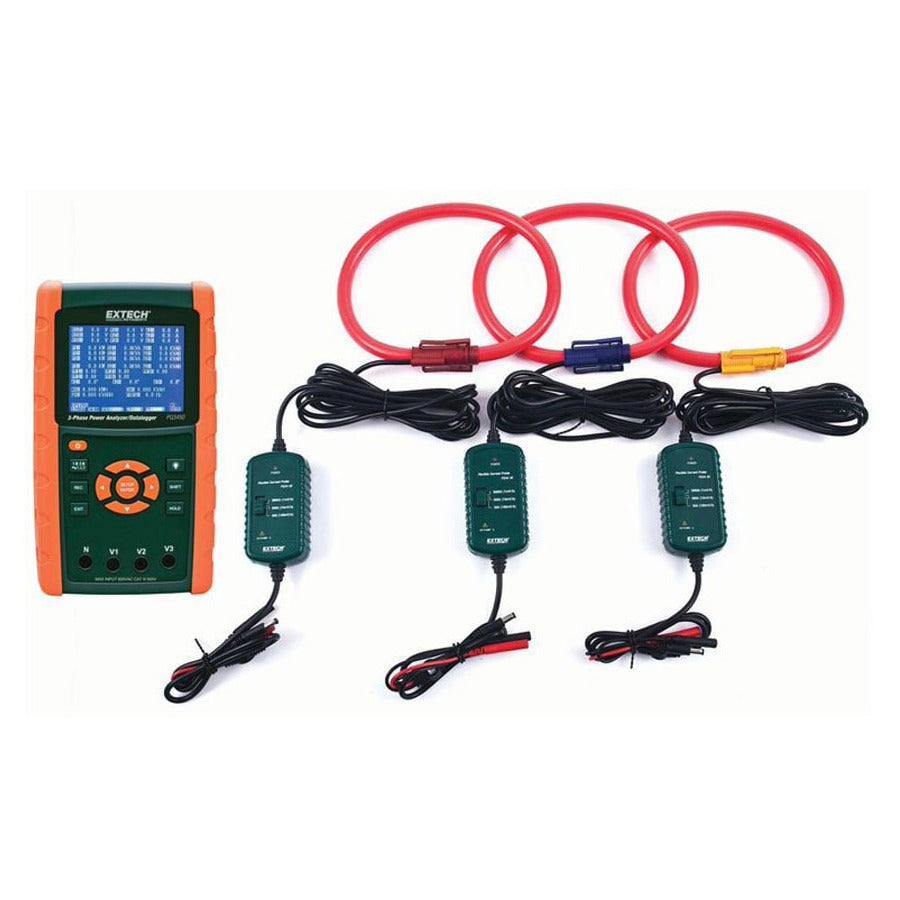

- Complete Kit: Includes four voltage leads with alligator clips, three 3000A flexible current clamps, 8 AA batteries, an SD card, a 100-240 Volt AC adapter, and a carrying case.
Specifications
| Specification | Details |
|---|---|
| Model No | PQ3450-30 |
| Measurement Type | 3-Phase Power Analyzer/Data Logger |
| Maximum Current | 3000A |
| Voltage Range | Up to 600 VAC |
| Frequency Range | 45 Hz to 65 Hz |
| Data Logging Capacity | Up to 30,000 readings |
| Display | Large dot-matrix, backlit LCD |
| Dimensions | 8.86 x 4.92 x 2.52 inches (225 x 125 x 64 mm) |
| Weight | 2.2 lbs (1010 g) |
