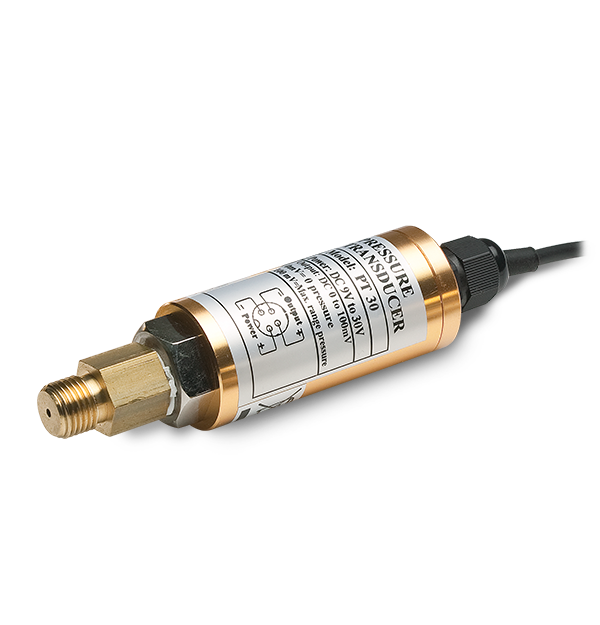

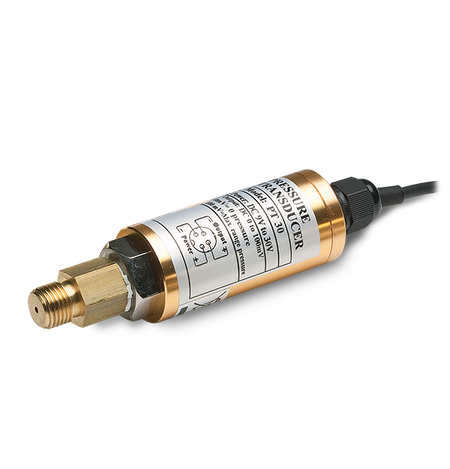

EXTECH PT30 Pressure Transducer
السعر العادي
1,138.03 SR
لم نتمكن من تحميل توفر الاستلام
Use this text to encourage communication or promote sharing on social networks.
The EXTECH PT30 is a high-performance pressure transducer designed to measure pressure up to 30 psi. It is suitable for various industrial and laboratory applications, providing accurate and reliable pressure readings.
Features
- Pressure Range: Measures up to 30 psi.
- Durability: Built to withstand harsh environments, making it ideal for industrial use.
- Output Signal: Provides a 4-20 mA or 0-10 V output signal for easy integration with control systems.
- Wide Operating Temperature: Operates effectively in temperatures ranging from -40 to 185°F (-40 to 85°C).
- Warranty: Comes with a 1-year warranty for added assurance.
Specifications
| Specification | Details |
|---|---|
| Model Number | PT30 |
| Pressure Range | 0 to 30 psi |
| Output Signal | 4-20 mA or 0-10 V |
| Power Supply | 12-30 VDC |
| Operating Temperature | -40 to 185°F (-40 to 85°C) |
| Dimensions | 2.5 x 2.5 x 5.5 inches |
| Weight | 1.5 lbs (680 g) |
