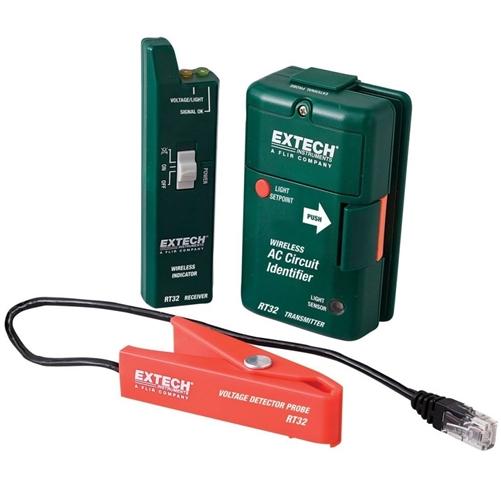

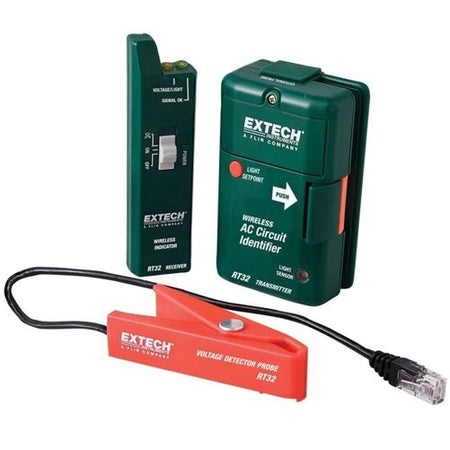

The EXTECH RT32 is a wireless AC circuit identifier that combines non-contact voltage detection with RF (Radio Frequency) transmission technology. This tool allows users to identify mid-run wires and find the breaker that powers a circuit or light fixture without direct wire connections.
Features
- Non-Contact Voltage Detection: Simplifies mid-run wiring jobs by easily identifying the correct circuit powering the cable.
- Wireless Transmission: The transmitter signals the user at the breaker panel with LED and audible alerts, with a range of up to 100 meters.
- Clamp-Style Probe: Ideal for wires that are hard to isolate or reach.
- Built-in Light Sensor: Easily identifies lighting and outlet circuits.
- User-Friendly: Eliminates the need for an assistant or back-and-forth trips to confirm the correct circuit is powered down.
Specifications
| Specification | Details |
|---|---|
| Model Number | RT32 |
| Transmission Frequency | 869 MHz |
| Transmission Distance | Approx. 100m (328') |
| Power Supply | Two (2) 'AAA' batteries |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Storage Temperature | -30 to 60°C (-14 to 140°F) |
| Operating Humidity | 90% RH max |
| Dimensions | 101 x 61 x 38 mm (4.0 x 2.4 x 1.5") for transmitter; 114 x 30 x 26 mm (4.5 x 1.17 x 1.02") for receiver |
| Weight | 0.23 kg (8.0 oz) total |
