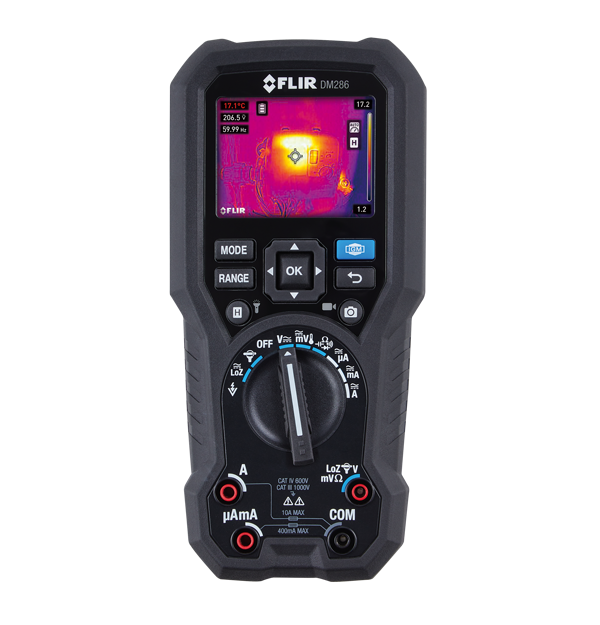

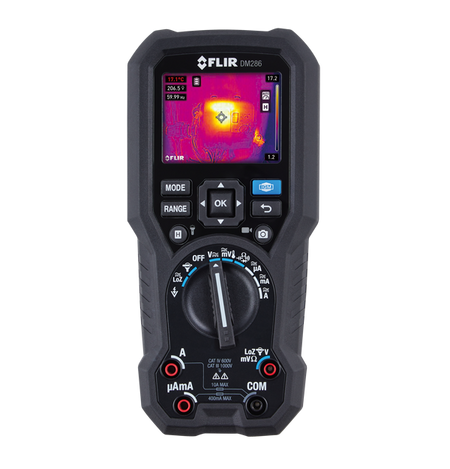

FLIR DM286 Industrial Grade Thermal Imager and Multi-Meter
السعر العادي
2,800.00 SR
لم نتمكن من تحميل توفر الاستلام
Use this text to encourage communication or promote sharing on social networks.
The FLIR DM286 is an advanced industrial-grade thermal imager and multi-meter designed for electrical inspectors. It combines the capabilities of a thermal imaging camera with a digital multimeter, allowing users to identify, document, and share findings efficiently and safely.
Features
- Infrared Guided Measurement (IGM™): This feature helps users locate potential hazards without direct contact, enhancing safety during inspections.
- Multi-Spectral Dynamic Imaging (MSX®): MSX technology embeds visible light details into thermal images, providing clearer and more informative visuals.
- High Storage Capacity: The device can capture and store up to 30,000 images and 100 log files, along with the ability to record thermal and visual video clips.
- Real-Time Data Streaming: Users can stream live data to mobile devices using the FLIR METERLiNK® app, facilitating quick analysis and sharing of readings.
Specifications
| Specification | Details |
|---|---|
| Model No | DM286 |
| IR Resolution | 160 × 120 (19,200 pixels) |
| AC/DC Voltage | 1000 V AC RMS ±(1.0% + 3), 1000 V DC ±(0.09% + 3) |
| AC/DC Amps | 10.00 A AC RMS ±(1.5% + 3), 10.00 A DC ±(1.0% + 3) |
| Temperature Range | –5°C to 300°C (23°F to 572°F) |
| Temperature Accuracy | ±3°C (5.4°F) or ±3% of the reading |
| Display | 2.8" |
| Weight | 569 g (1.25 lb) without battery |
| Battery Life | Approx. 6.5 hours in IGM mode |
| Connectivity | Bluetooth BLE |
| IP Rating | IP40 |
| Drop Test | 2 m (6.6 ft) |
