HD PHASE ROTATION METER PRM-100
السعر العادي
6,857.14 SR
لم نتمكن من تحميل توفر الاستلام
Use this text to encourage communication or promote sharing on social networks.

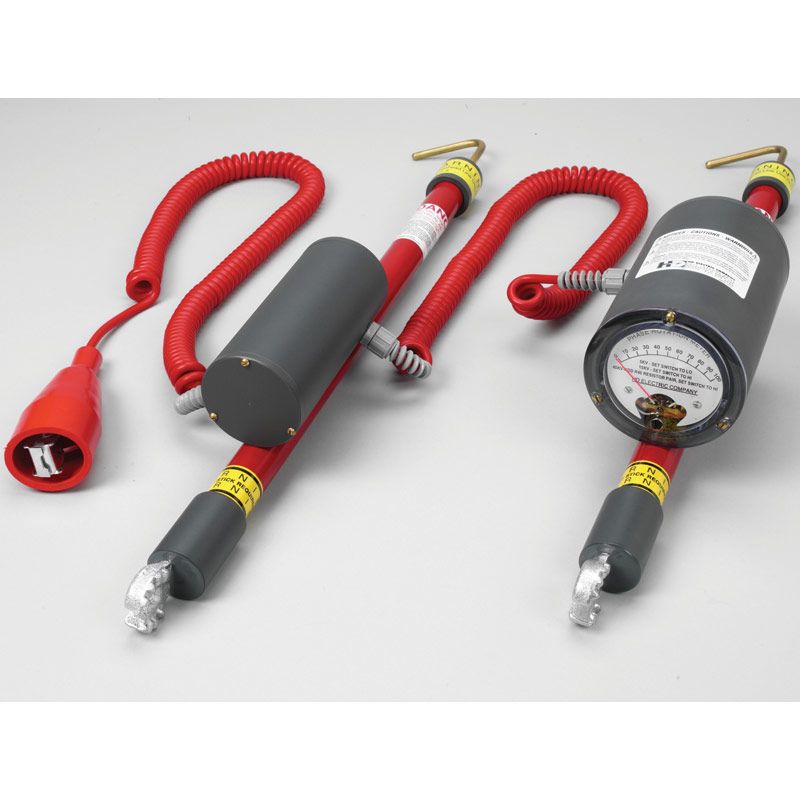

The HD Phase Rotation Meter PRM-100 is a high-voltage device designed to determine the phase rotation of electrical systems. It is particularly useful for identifying the leading and lagging phases in three-phase conductor systems, ensuring proper connections and system functionality.
Features
- Dual Voltage Ranges: The PRM-100 operates in two voltage ranges: 0-5kV and 0-15kV. It can also be used up to 45kV when optional resistor sticks (model R-45) are added.
- Large Meter Face: The device features a large 3-inch meter face for easy reading and increased accuracy.
- Strain Relief Fittings: These fittings help reduce cable damage at points of highest stress.
- Universal Hotstick Attachment: The meter includes universal splines for easy attachment to hotsticks.
- Adaptable for Underground Applications: Optional bushing probes can be added for underground use.
- Operating Frequency: The meter operates at 50/60Hz and is made in the USA.
Specifications
| Specification | Details |
|---|---|
| Model No | PRM-100 |
| Voltage Range | 0-5kV / 0-15kV; up to 45kV with R-45 |
| Meter Face Size | 3 inches (7.6 cm) |
| Weight | 18 lbs (approximately 8.2 kg) |
| Operating Frequency | 50/60Hz |
| Manufacturer Warranty | 1 Year |
