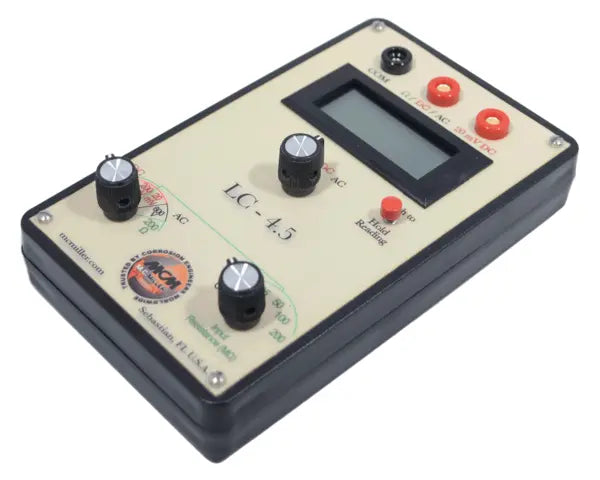

The LC-4.5 Voltmeter is a specialized hand-held voltmeter designed for corrosion and cathodic protection testing on underground structures. It is engineered for field testing under various environmental conditions, ensuring reliability and accuracy.
Features
- Durable Construction: Features sealed Mil-Spec switches, sealed windows, and a gasketed case, along with a moisture and fungus-resistant coating on the printed circuit board.
- Large Display: The voltmeter has a large 0.5-inch display that is easy to read in both high and low lighting conditions.
-
Wide Measurement Range:
- DC Voltage: Ranges from 0 to 200 V with various resolutions (0-20 mV, 0-200 mV, 0-2 V, 0-200 V).
- AC Voltage: Measures up to 600 V.
- Resistance: Measures from 0 to 200 Ohms.
- DC Current: Requires an optional plug-in shunt for measurements up to 20 A.
- Selectable Input Resistance: This feature allows for the detection of high resistance in external circuits, minimizing errors.
- Push-to-Hold Function: Freezes the display for easier reading, especially useful in areas with varying stray currents.
Specifications
| Specification | Details |
|---|---|
| Model No | 5203 |
| DC Voltage Range | 0 - 20 mV, 0 - 200 mV, 0 - 2 V, 0 - 200 V |
| AC Voltage Range | 0 - 600 V |
| Resistance Range | 0 - 200 Ohms |
| DC Current Range | 0 - 20 A (with optional shunt) |
| Accuracy | DCV: 1% of reading ±1 digit |
| Operating Temperature | 8°F to 176°F (-14°C to 80°C) |
| Dimensions | 6-1/8 x 3-5/8 x 1-3/4 inches |
| Weight | 11 oz (approx. 0.312 kg) |
