Spartna SPR-211 600A AC/DC True RMS Clamp Meters
Regular price
350.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

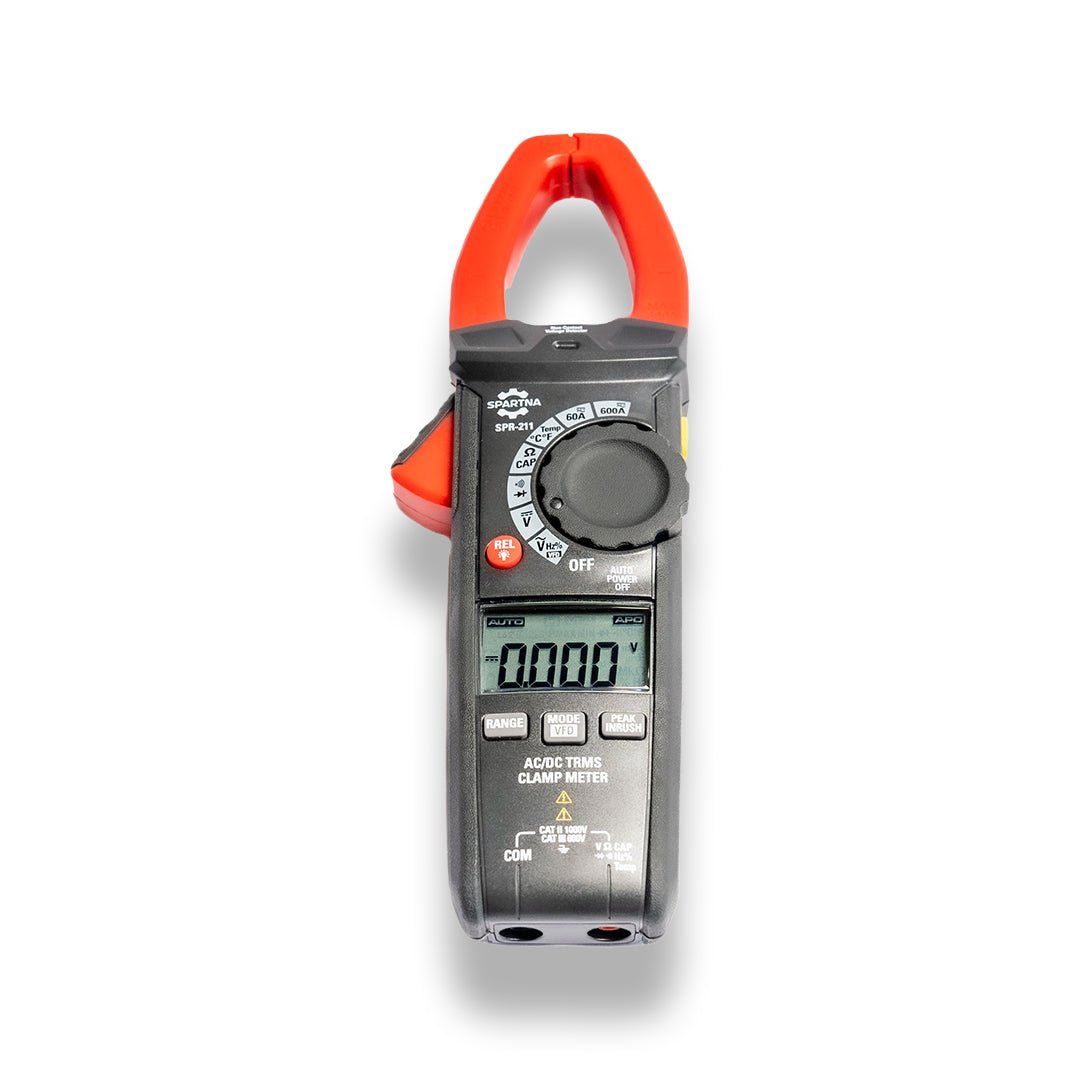

Spartna SPR-211 clamp meters providing fast A/D converting
sampling time , high accuracy offer all needed features for
measurement. They are with modern bodies and jaws designed
for perfect handhold & tight place testing. A clear backlit display
is easy to see and a handy data hold keeps measurements on
the display.
Features
- 600A AC and DC True RMS current measurement.
- 6000 digit backlit display and flashlight.
- Low pass filter (VFD).
- Data hold and peak hold.
- REL (Zero) function and auto power off.
- Low Battery Indication.
- 100ms Inrush current.
- 1.2” (30mm) Jaw opening.
- Bluetooth interface.
- LoZ Voltage measurement.
- Built-in Non-contact AC voltage detector (NCV).
- Diode and continuity measurement.
- Frequency and type k temperature.

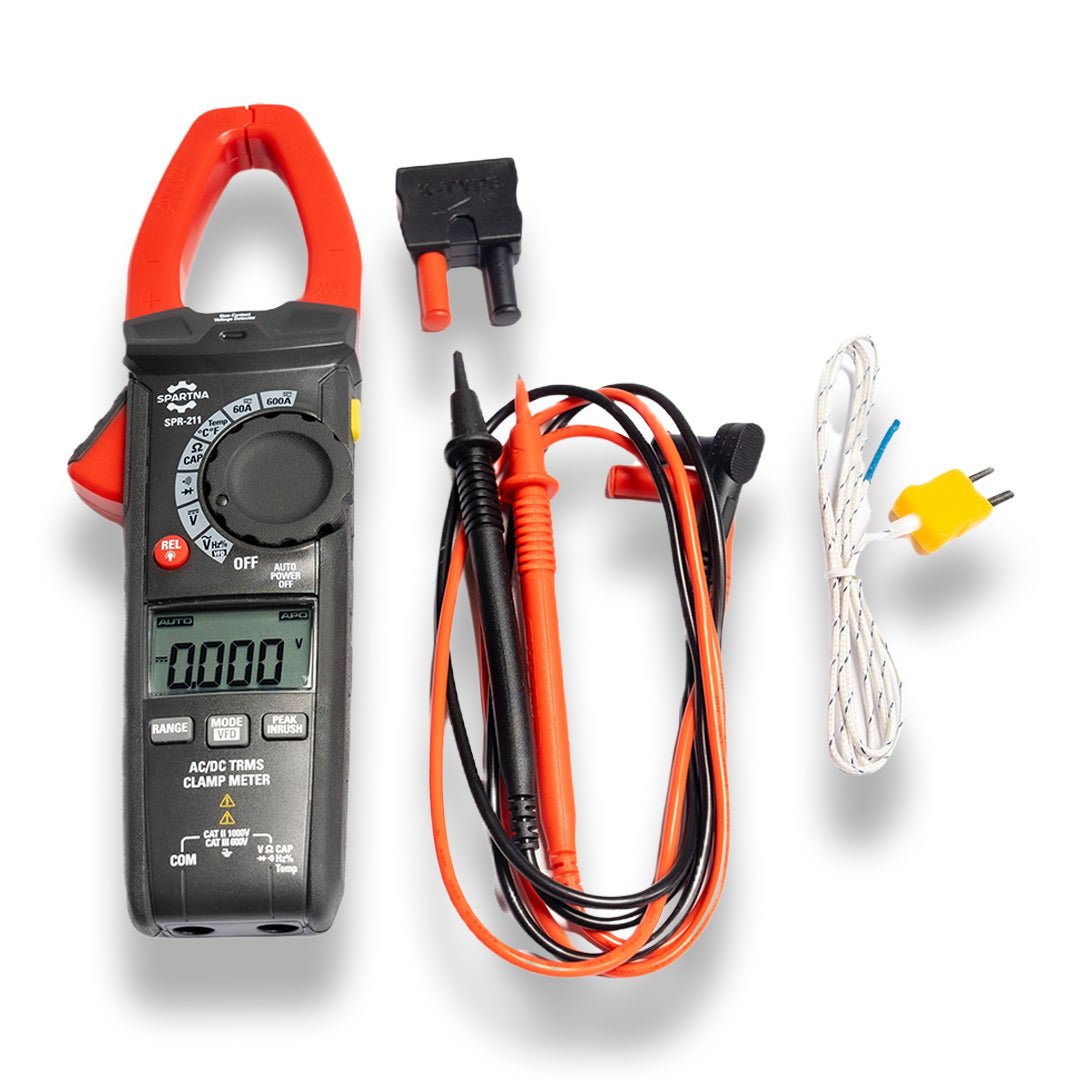

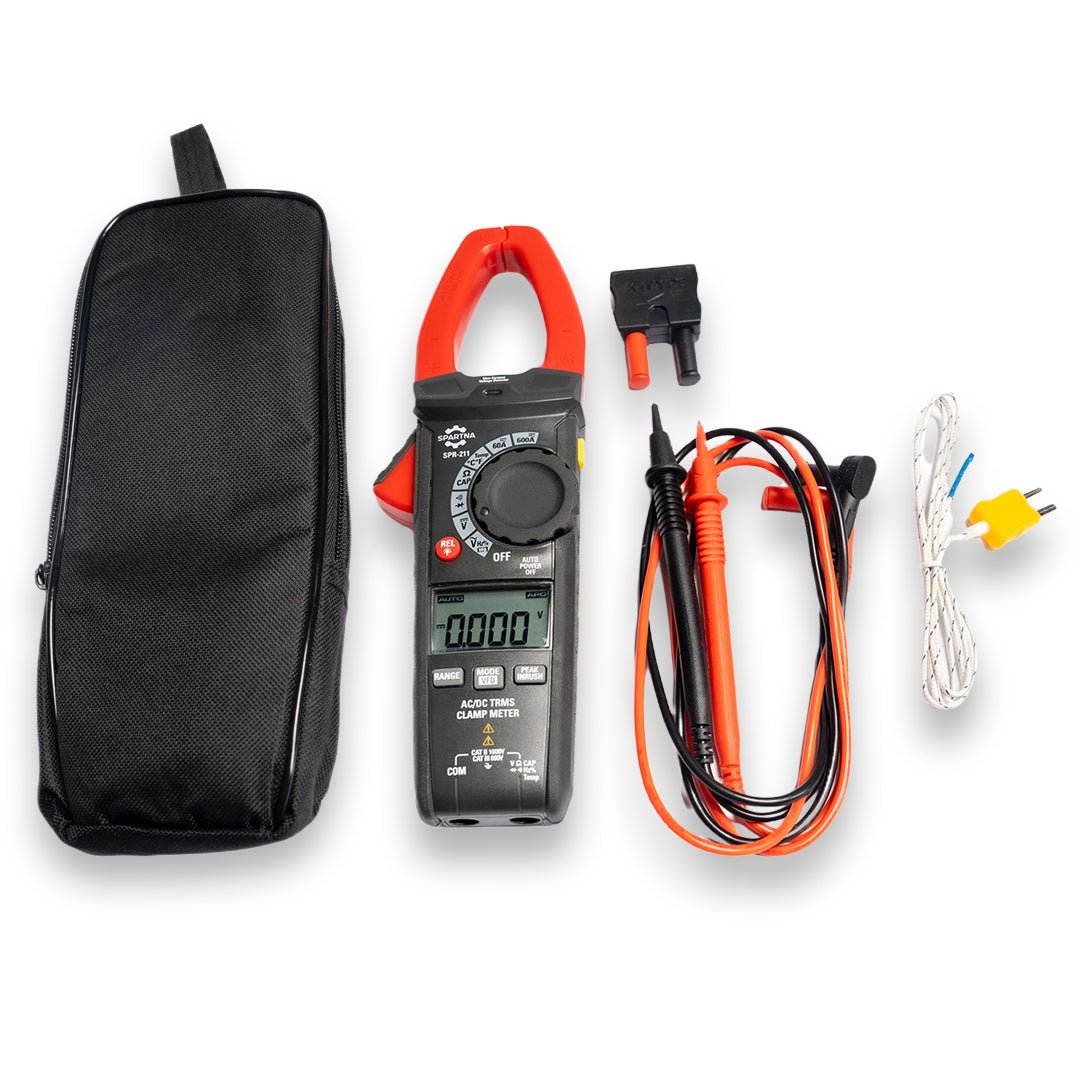

- Accessories: Test leads, battery, temperature probe and carrying case.
Specification
- AC Current
Range: 60/600A
Accuracy: ±(2.5%+8d) - DC Current
Range: 60/600A
Accuracy: ±(2.0%+5d)
- AC Voltage
Range: 6 / 60 / 600 / 1000 V
Accuracy: ±(1.0%+5d)
- DC Voltage
Range: 6 / 60 / 600 / 1000 V
Accuracy: ±(0.5%+2d) - Resistance
Range: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
Accuracy: ±(3.0%+5d) - Capacitance
Range: 100nF/1000nF/10μF/100μF/1000μF/10mF/100mF
Accuracy: ±(2.5%+5d) - Frequency
Range: 10Hz-100kHz
Accuracy: ±(1.0%+5d) - Temperature
Range: -20°C～1000°C/ -4°F～1832°F
Accuracy: ±(3.0%+2) / ±(3.0%+5) - Display: 6000 Counts
- Operating Temperature: 5 to 40°C (41 to 104°F)
- Storage Temperature: -20 to 60°C (-4 to 140°F)
- Power Supply: 3 x 1.5 AAA Battery
- Dimensions: 220mm x 80mm x 39mm
- Weight: 305g
