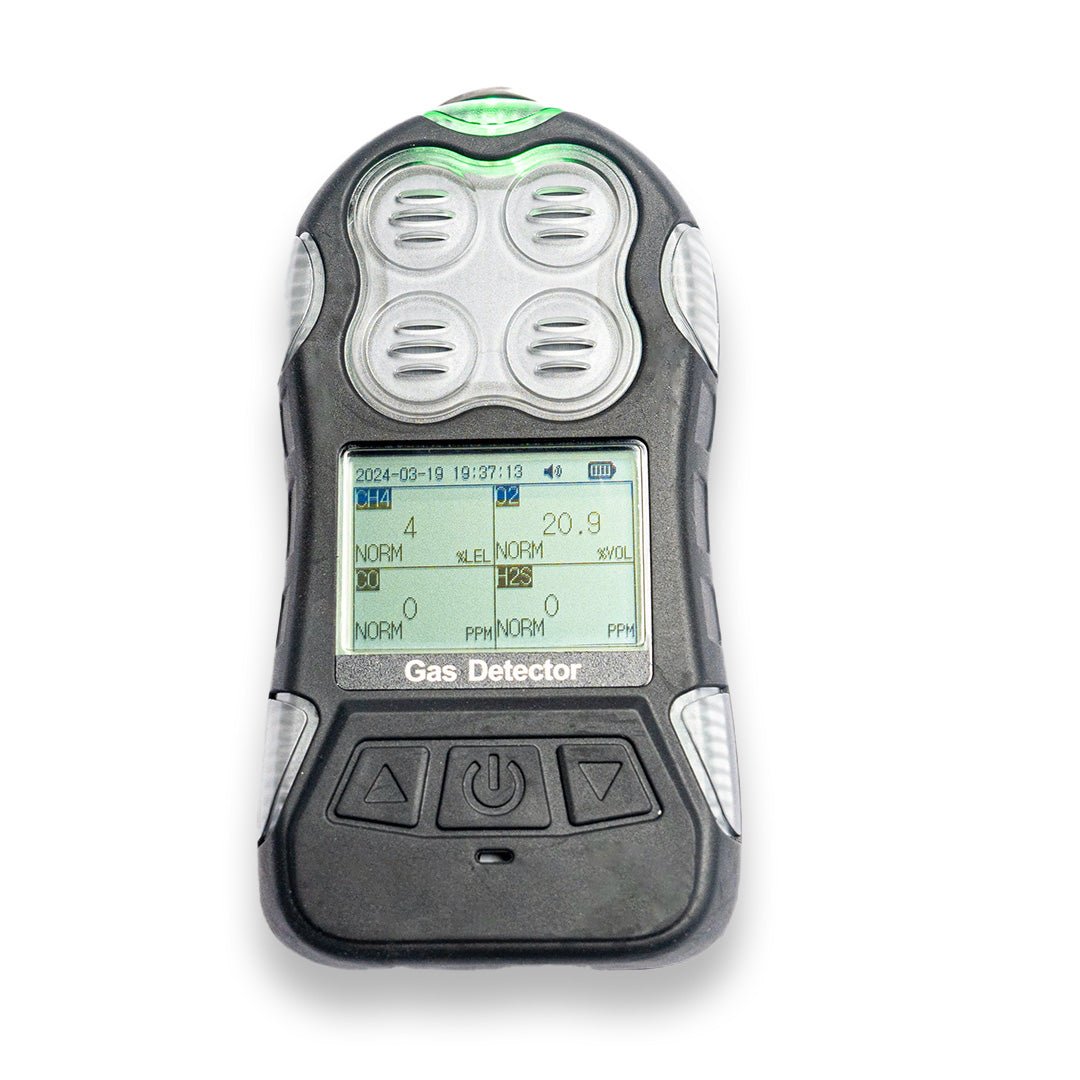

Spartna SPR-701 Portable Multi-Gas Detector
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
SPR-701 portable multi-gas detector could detect combustible gas, O2 and other two types toxic gases continuously and simultaneously. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers’ life and avoid damage on the relevant equipment. The shell is made of high - strength engineering plastics and composite anti-skid rubber. Waterproof, dust-proof, and explosion-proof.
Features
- Smart, firm, portable and can be used as fixed device.
- High accuracy.
- Compact size and light weight.
- Waterproof, dust-proof, and explosion-proof.
- Audible, visible and vibrating alarms.
- High and low alarm point.
- Friendly and easy to use.
- Battery type: 3.7V/1800mA.
- Rechargeable battery.
- Low maintenance cost, plug-in type sensors and battery.
- Accessories:

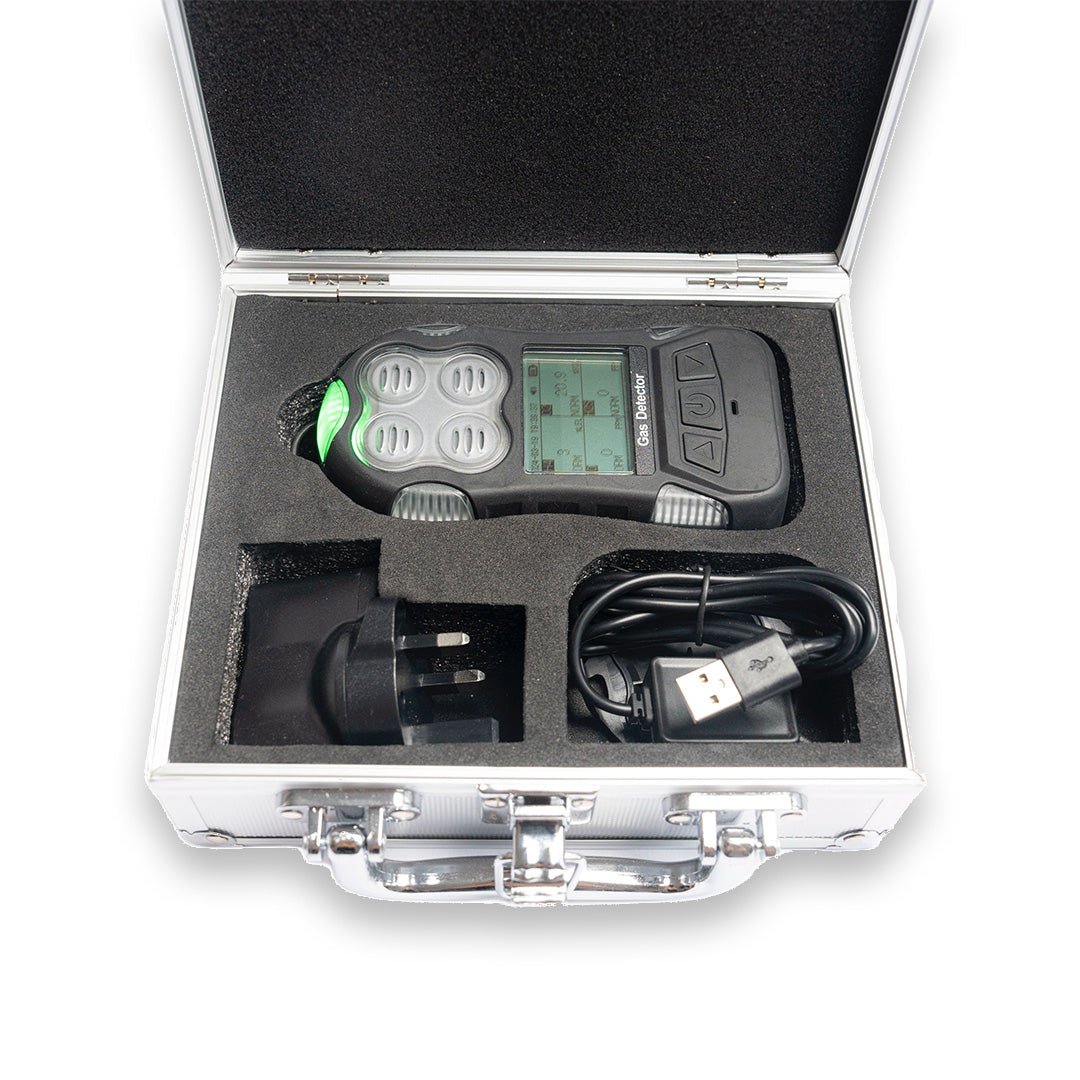

Suit case packaging
Gas detector

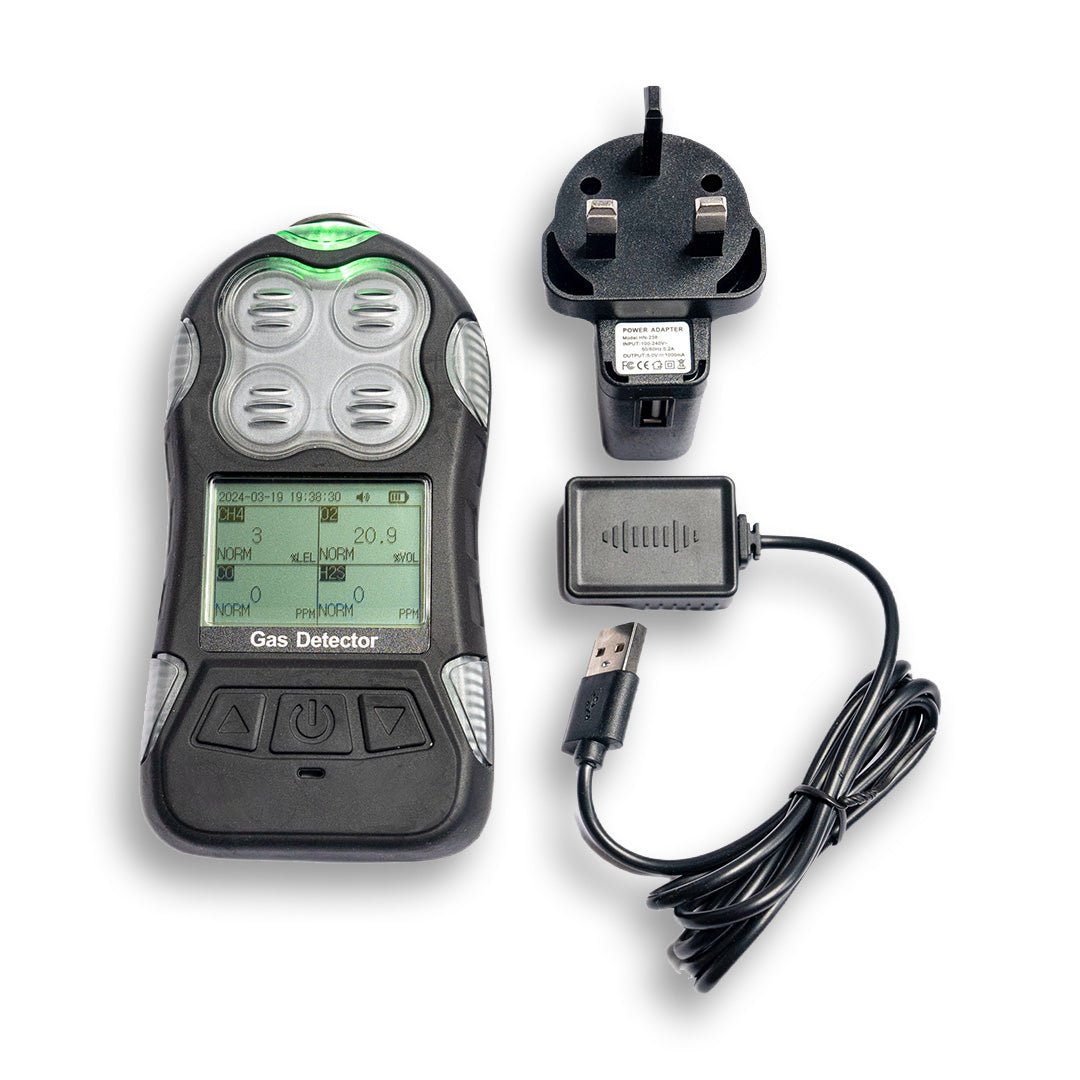

Charger
User manual
Certificate
Calibration cap

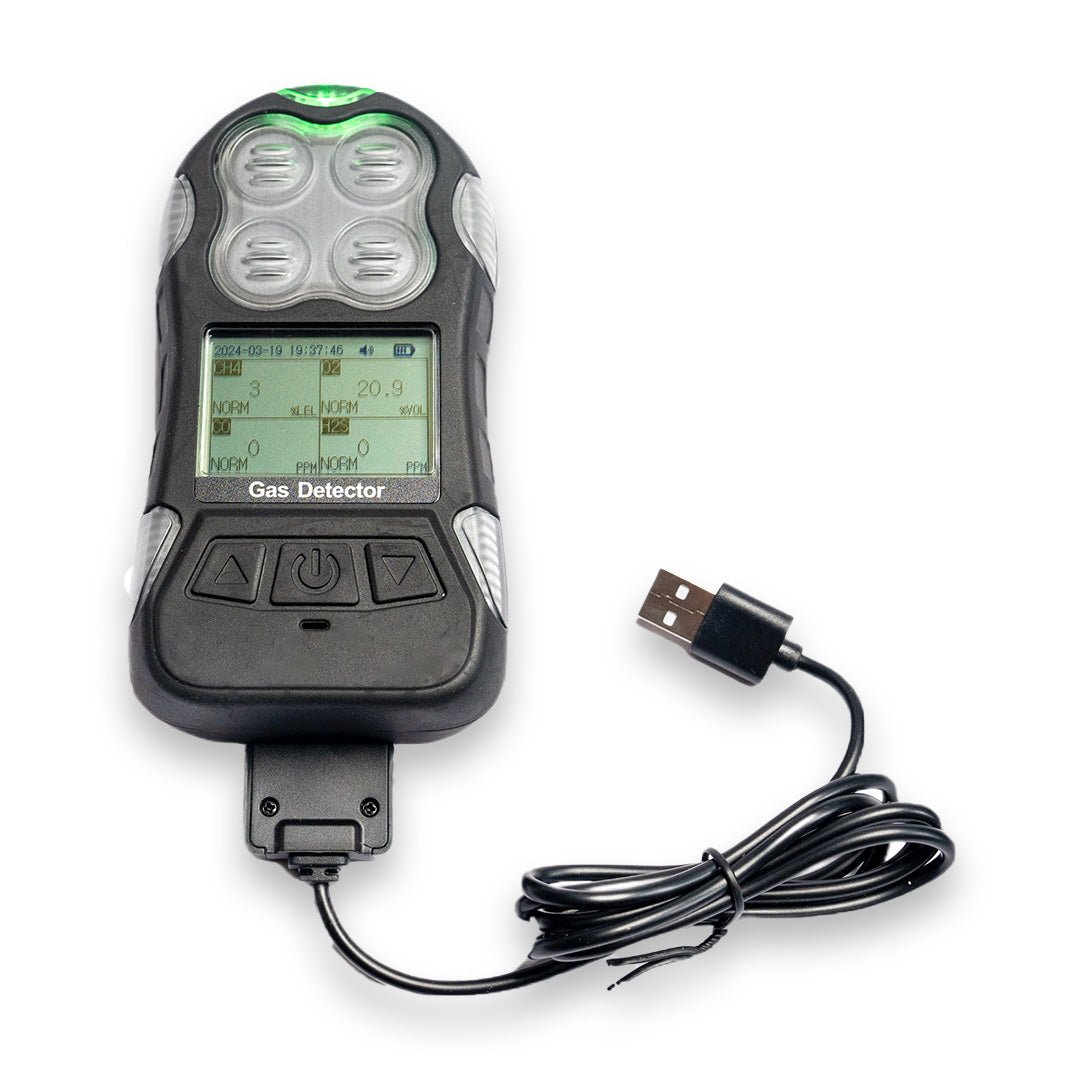

Communications cable
Specification
-
- Range:
O2: 0～30%vol
CO: 0～1000ppm
H2S: 0～100ppm
CH4: 0～100%LEL
- Range:
-
Resolution: O2: 0.1%vol, CO: 1ppm H2S: 1ppm, CH4: 1%LEL
- Accuracy: ≤±5% F.S.
-
Low Alarm:
O2: 19.5%vol
CO: 50ppm
H2S: 10ppm
CH4: 20%LEL -
High Alarm:
O2: 23.5%vol
CO: 150ppm
H2S: 35ppm
CH4: 50%LEL -
Response Time: T90<60s
- Indication: LCD displays real - time and system status; LED, audio and vibration alert for gas leakage
-
Working Environment: -10°C～50°C, ＜95%RH
-
Gas Sensor Life: 2 years (Depends on the specific usage environment)
-
Protection Grade: IP66
- Explosion-Proof Grade: Ex ib IIB T3 Gb
-
Working time: ≥ 8h continuously (without alarming)
-
Power Source: DC3.7V Li-on battery, 1800mAh
- Charging Time: < 6h
-
Dimensions: 136mm×72mm×32mm
-
Weight: 300g
