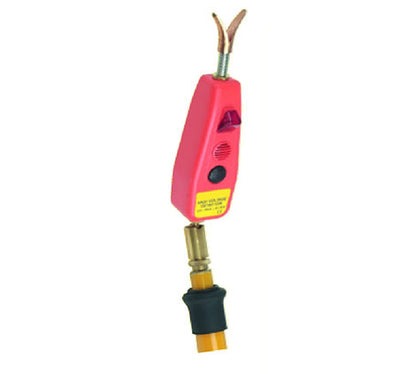

BESANTEK BST-HVD2 HIGH VOLTAGE DETECTOR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
BESANTEK High Voltage Detector is designed to detect high and very high voltage in AC lines. An elongated insulation rod permits checking of high tension circuits at safe distance for voltage. It is also very handy, telescoping, compact, lightweight and easy to use.
Features
- Telescopic, compact, light weight, easy to use and handy.
- High-voltage detectable.
- The equipment, whether in stretched state is available for voltage detection in high-tension.
- Easy to recognize indication.
- Intermittent lighting in red of a high intensity LED and intermittent audible sound of electronic buzzer are easily recognizable at full day light and busy noisy location.
- Waterproof.
- The detecting head, being tightly enclosed, is free from any trouble due to dust and water.
- Accessories: Instruction manual and soft pouch.
Specifications
|
Measuring Voltage Range |
6kV - 81.5kV |
|
Operation Start Voltage (To Ground) |
2.7kV |
|
Withstand Voltage (On Insulating Rod) |
100kV/300mm: 1 minutes |
|
Insulation Resistance |
2000Mmin. by 1kV /DC megger at the same testing location as withstand voltage |
|
Leakage Current |
100A or less than 100A at withstand voltage test |
|
Construction |
Water proof (detecting head impervious to water) |
|
Extracted Overall Length Display |
Light: flashing red light Sound: intermittent sound 50dB apart 3m |
|
Frequency |
50/60 Hz |
|
Working Temperature |
0 to 40C |
|
Battery |
2 button - cells LR44 (1.5V) |
|
Retracted Overall Length |
1370 50mm |
|
Extracted Overall Length |
2450 50mm |
|
Weight |
Approx. 590g (battery included) |
