BESANTEK BST-HVD5 CAPACTIVE HIGH VOLTAGE DETECTOR (CONTACT)
Regular price
1,800.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

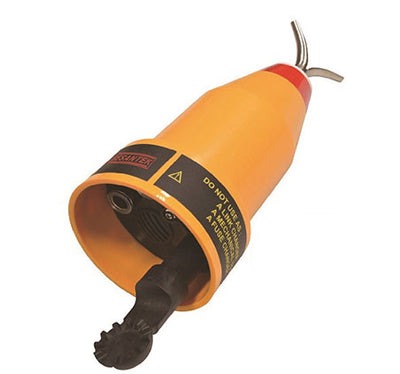

BESANTEK Capacitive High Voltage Detector has been designed to meet the latest IEC standards. It is self starting and automatically activated when the high voltage is applied to the contact electrode.
Features
- Excellent shock resistance.
- Rugged nylon molding.
- Auto on (when voltage detected).
- Excellent drop resistance.
- Good vibration resistance.
- Loud sound alarm indication.
- Built-in proving and self-test circuit.
- High bright color-coded LEDs.
- Works from normal 9V battery.
- Interchangeable contact electrode.
- Works in all weather conditions.
- Compatible with all link sticks.
- Lightweight, robust and compact.
- Suitable for indoor and outdoor use.
- Self (auto on) or manual arming.
- Easy access to battery.
- Customized threshold on demand.
- Auto off (if no voltage detected).
- Accessories: Instruction manual, hooks, clean solution and carry case.
Specifications
|
System Voltage |
11/36kV |
|
Threshold Set Within Range |
3.3kV to 4.95kV |
|
Response Time |
<1sec |
|
Auto-OFF |
3min |
|
Bridging Protection |
|
|
Spark Protection |
|
|
Battery Low |
<7V |
|
Threshold |
4.12kV |
|
Battery Current |
<30mA |
|
Green=Armed |
|
|
Red=V Detected |
|
|
Test / Arming Button |
|
|
Dimensions |
300 (L) x 100 (W) x 100 (D) mm |
|
Weight |
Approx. 550g (battery included) |
