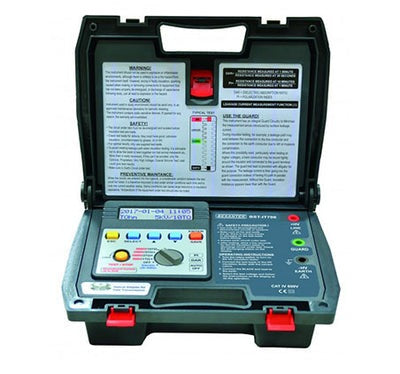

BESANTEK BST-IT706 DIGITAL HIGH VOLTAGE INSULATION TESTER 5KV
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
BESANTEK Digital High Voltage Insulation Tester Is Designed To Evaluate Wires And Cables For Proper Insulation tolerances.
Features
- 2 lines 16 characters LCD.
- Microprocessor controlled.
- Tests insulation resistance up to 10T.
- Four insulation test voltages: 500V, 1000V, 2500V and 5000V.
- AC/DC voltmeter.
- PI (Polarization Index) indication.
- DAR (Dielectric Absorption Ratio) indication.
- Auto-ranging on all insulation ranges.
- Optical USB to RS-232 data transmission.
- Well isolated from contact.
- Well protected from surges.
- 2 built-in optical LEDs for data transfer.
- Visual and audio warning of external voltage presence (30Vac or 30Vdc).
- Auto-hold function to freeze reading.
- Overload protection.
- Adjustable testing duration: 1~30 minutes.
- Internal memory for data storage.
- Displays testing duration for insulation measurement.
- Auto-off function.
- 200 measurement results can be saved in memory and recalled on display.
- Accessories: Instruction manual, test leads, data transmission cable, compact disk (CD) for PC interface, alligator clip and batteries.
Specifications
|
500V, 1000V, 2500V, 5000V |
Test Voltage |
|
|
1T/500V 2T/1000V 5T/2500V 10T/5000V |
Insulation Resistance |
|
|
(5.0%rdg+5dgt) |
0~100G/500V 0~200G/1000V 0~500G/2500V 0~1000G/5000V |
Accuracy |
|
12%rdg |
100G~1T/500V 200G~2T/1000V 500G~5T/2500V 1000G~10T/5000V |
|
|
1000M: 1M 10G: 0.01G 100G: 0.1G 1T: 1G 10T: 10G |
Resolution |
|
|
up to 5mA |
Short Circuit Current |
|
|
|
PI (Polarization Index) |
|
|
|
DAR (Dielectric Absorption Ratio) |
|
|
Range: 30~600V AC, 30~600V DC Accuracy: (2.0%rdg+3dgt) Resolution: 1V |
Voltmeter |
|
|
0.5nA~0.55mA (depending on the insulation resistance) |
Current Measurement |
|
|
1.5V "C" x 8 alkaline batteries |
Power Source |
|
|
330 (L) 260 (W) 160 (D) mm |
Dimensions |
|
|
Approx. 4268g(battery included) |
Weight |
|
