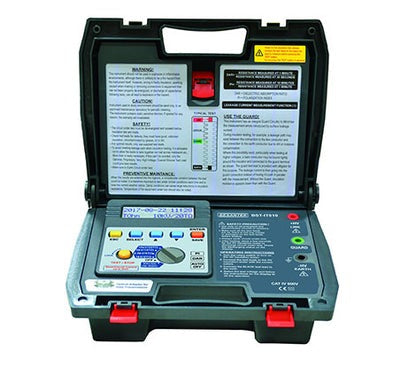

BESANTEK BST-IT810 DIGITAL HIGH VOLTAGE INSULATION TESTER 10KV

Out of stock
SKU: BST-IT810
7,332.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

BESANTEK Digital High Voltage Insulation Tester Is Designed To Evaluate Wires And Cables For Proper Insulation tolerances.

Features
  • 2 lines 16 characters LCD.
  • Microprocessor controlled.
  • Tests insulation resistance up to 20T.
  • Four insulation test voltages: 1000V, 2500V, 5000V and 10000V.
  • AC/DC voltmeter.
  • PI (Polarization Index) indication.
  • DAR (Dielectric Absorption Ratio) indication.
  • Auto-ranging on all insulation ranges.
  • Optical USB to RS-232 data transmission.
  • Well isolated from contact.
  • Well protected from surges.
  • 2 built-in optical LEDs for data transfer.
  • Visual and audio warning of external voltage presence (30Vac or 30Vdc).
  • Auto-hold function to freeze reading.
  • Overload protection.
  • Adjustable testing duration: 1~30 minutes.
  • Internal memory for data storage.
  • Displays testing duration for insulation measurement.
  • Auto-off function.
  • 200 measurement results can be saved in memory and recalled on display.
  • Accessories: Instruction manual, test leads, data transmission cable, compact disk (CD) for PC interface, alligator clip and batteries.
Specifications

1000V, 2500V, 5000V, 10000V

Test Voltage

2T/1000V

5T/2500V

10T/5000V

20T/10000V

Insulation Resistance

(5.0%rdg+5dgt)

0~200G/1000V

0~500G/2500V

0~100G/5000V

0~2000G/10000V

Accuracy

20%rdg

200G~2T/500V

500G~5T/1000V

1000G~10T/2500V

2000G~20T/5000V

1000M: 1M

10G: 0.01G

100G: 0.1G

1T: 1G

10T: 10G

20T: 100G

Resolution

up to 5mA

Short Circuit Current



PI (Polarization Index)



DAR (Dielectric Absorption Ratio)

Range: 30~600V AC, 30~600V DC

Accuracy: (2.0%rdg+3dgt)

Resolution: 1V

Voltmeter

0.5nA~0.55mA

(depending on the insulation resistance)

Current Measurement

1.5V "C" x 8 alkaline batteries

Power Source

330 (L) 260 (W) 160 (D) mm

Dimensions

Approx. 4284g

Weight
