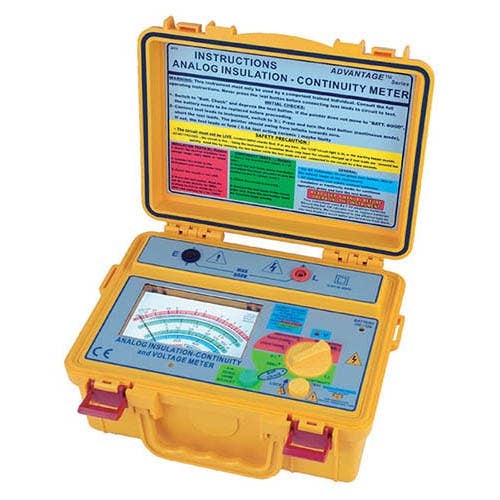

BESANTEK Corporation BST-IT26 Analog Insulation Tester 1000V
Regular price
845.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The BESANTEK BSTIT26 Analog Insulation Tester 1000V is designed to evaluate wires and cables for proper insulation tolerances. This analog model offers three test voltages at 250V, 500V, and 1000V DC.
Features
- High quality taut band movement
- Three insulation test voltages
- Two continuity test on "low ohms": 3Ohm and 500Ohm
- AC voltmeter with linear scale up to 600 V AC
- Test voltage (DC V): 250V/500V/1000V
- Insulation Resistance Range: 0-100MOhm / 0-200MOhm / 0-400MOhm
- 200mA continuity short circuit current
- 1mA test current on insulation test at nominal voltage
- Automatic discharge of capacitance and inductive circuit with charge stored in the circuit under test
- Live warning and display or external voltage presence
- Fuse, air gap, crowbar and overload protected
- On line battery monitoring shows battery status
- Push and turn locking switch for continuous and hand free testing
- Manual zero ohm adjustment
- Low battery consumption
- Mirror scale
- Compact and lightweight
- Designed for meeting international standards
- Supplied with high quality test leads
- BS 16th edition
Specifications
| Specification | Value |
|---|---|
| Test Voltage (DCV) | 250V / 500V / 1000V |
| Output Voltage on Open Circuit | Rated test voltage +10% |
| Measuring Ranges (Insulation Resistance) | 0-100 ΜΩ / 0-200 ΜΩ / 0-400 ΜΩ |
| Mid-Scale Value | 1 ΜΩ / 2 ΜΩ / 4 ΜΩ |
| Scale Multiplier | x½ / x1 / x2 |
| Accuracy (Insulation Resistance) | ±5% of full scale |
| Output Short-Circuit Current (Insulation) | ≥1.0 mA |
| Measuring Ranges (Continuity) | 30 / 5000 |
| Accuracy (Continuity) | ±1.5% of scale length |
| Output Short-Circuit Current (Continuity) | ≥200 mA |
| AC Voltage Range | 0~600V AC |
| Accuracy (AC Voltage) | ±3% of scale length |
| Voltage Warning | Warning light circuit live lit from 90V dc / 70V ac; buzzer beep from 24V ac/dc |
| Battery Check | Good batteries indicated from 8 V dc to 13 V dc during a load test of 205 mA |
| Battery OK Indicator | LED lit from 6.5 V dc and operative while testing |
| Power Source | 1.5V (AA) x 8 |
| Dimensions | 250 (L) x 190 (W) x 110 (D) mm |
| Weight | Approx. 1400 g (battery included) |
