KYORITSU

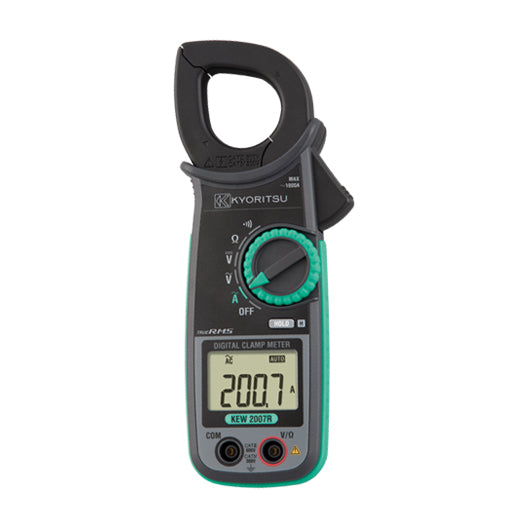

CLAMP METER AC KYORITSU 1000A 2007R

In stock
SKU: 2007R
180.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The Kyoritsu 2007R is an AC clamp meter designed for measuring current up to 1000A. It is particularly useful for professionals in electrical maintenance and troubleshooting, providing accurate readings in various applications.

Features
  • Measurement Range: AC current measurement up to 1000A with auto-ranging capabilities.
  • True RMS Function: Ensures accurate readings even in the presence of non-linear loads, such as those found in modern electrical systems.
  • Frequency Response: Capable of measuring frequencies from 40Hz to 400Hz.
  • Durable Design: Built to withstand the rigors of fieldwork, with a robust and ergonomic design for ease of use.
  • Data Hold Function: Allows users to freeze the displayed reading for easier viewing.
Specifications
Specification Details
Model No 2007R
AC Current Measurement 600.0/1000A (Auto-ranging)
AC Voltage Measurement Up to 600.0V
DC Voltage Measurement Up to 600.0V
Resistance Measurement 600Ω/6.000kΩ (Auto-ranging)
Continuity Buzzer Yes (Buzzer sounds below 90Ω)
Conductor Size φ33mm max.
Power Source R03/LR03 (AAA) (1.5V) × 2
Dimensions 204(L) × 81(W) × 36(D) mm
Weight Approx. 220g (including batteries)
Downloads
Kyoritsu 2007R Datasheet.
