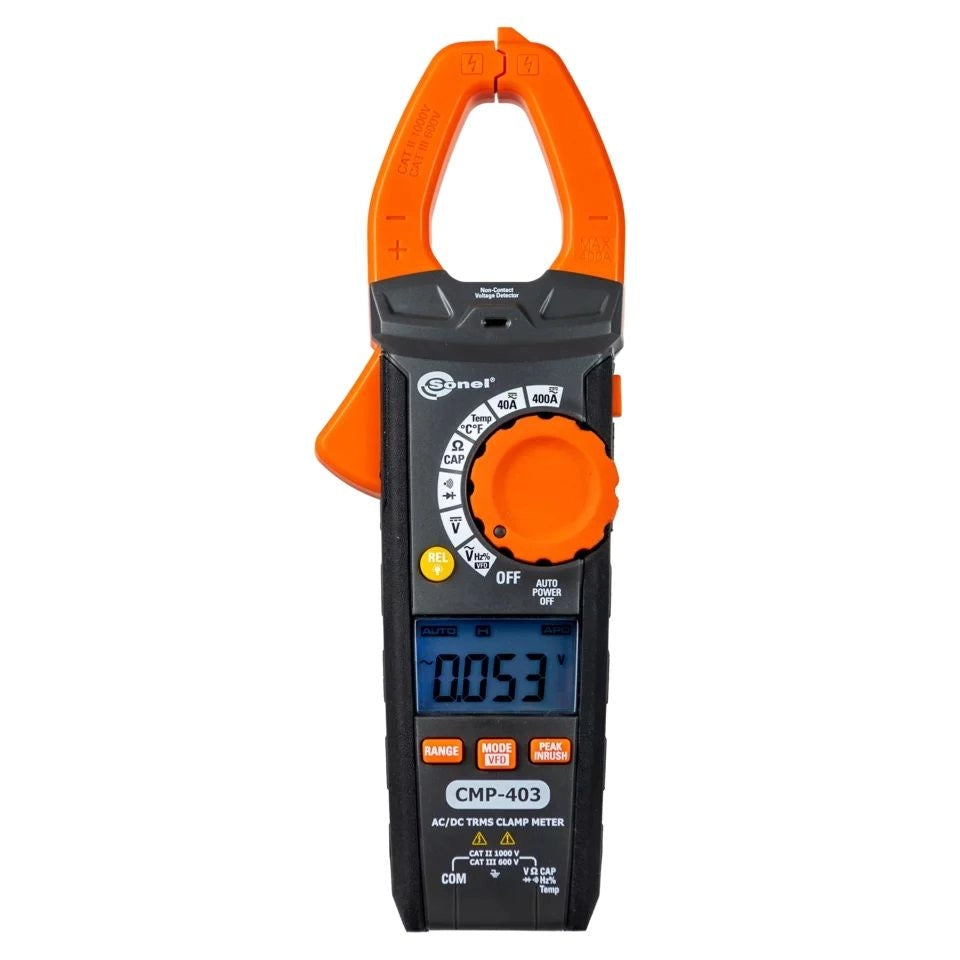

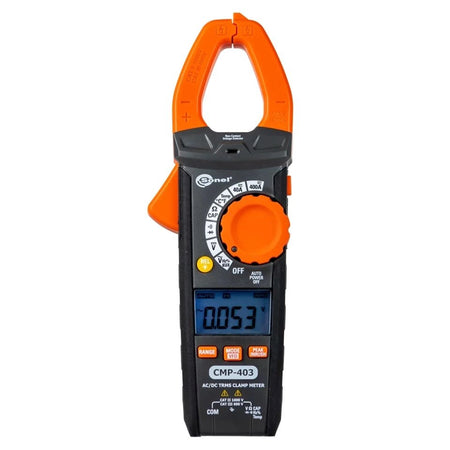

CMP-403 Digital clamp meter AC/DC 400A
Regular price
550.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The CMP-403 Digital Clamp Meter is a versatile and reliable tool designed for measuring AC and DC current, voltage, resistance, frequency, capacitance, and temperature. It is particularly useful for electricians and technicians who require accurate measurements in various electrical applications.
Features
- Current Measurement: Measures AC (true RMS) and DC current up to 400A.
- Voltage Measurement: Capable of measuring AC voltage up to 1000V and DC voltage up to 1000V.
- Resistance Measurement: Measures resistance up to 40.00 MΩ.
- Capacitance Measurement: Can measure capacitance up to 99.99 mF.
- Frequency Measurement: Measures frequency for current up to 999.9 Hz and voltage up to 99.99 kHz.
- Temperature Measurement: Measures temperature from -20°C to +1000°C (-4°F to +1832°F).
- Additional Functions: Includes inrush current measurement, max/min peak values, and relative value measurement.
- Built-in Flashlight: Provides visibility in dark working conditions.
- Robust Design: Features a durable rubber housing to protect against accidental damage.
Specifications
| Specification | Details |
|---|---|
| Model No | CMP-403 |
| AC Current Measurement | Up to 400.0 A |
| DC Current Measurement | Up to 400.0 A |
| AC Voltage Measurement | Up to 1000 V |
| DC Voltage Measurement | Up to 1000 V |
| Resistance Measurement | Up to 40.00 MΩ |
| Capacitance Measurement | Up to 99.99 mF |
| Frequency Measurement | Current: up to 999.9 Hz |
| Voltage: up to 99.99 kHz | |
| Temperature Measurement | -20.0°C to +1000°C |
| -4.0°F to +1832°F | |
| Dimensions | 220 x 80 x 39 mm |
| Weight | Approx. 500g |
