EXTECH 1000 A Clamp Meter with IR Thermometer
Regular price
850.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

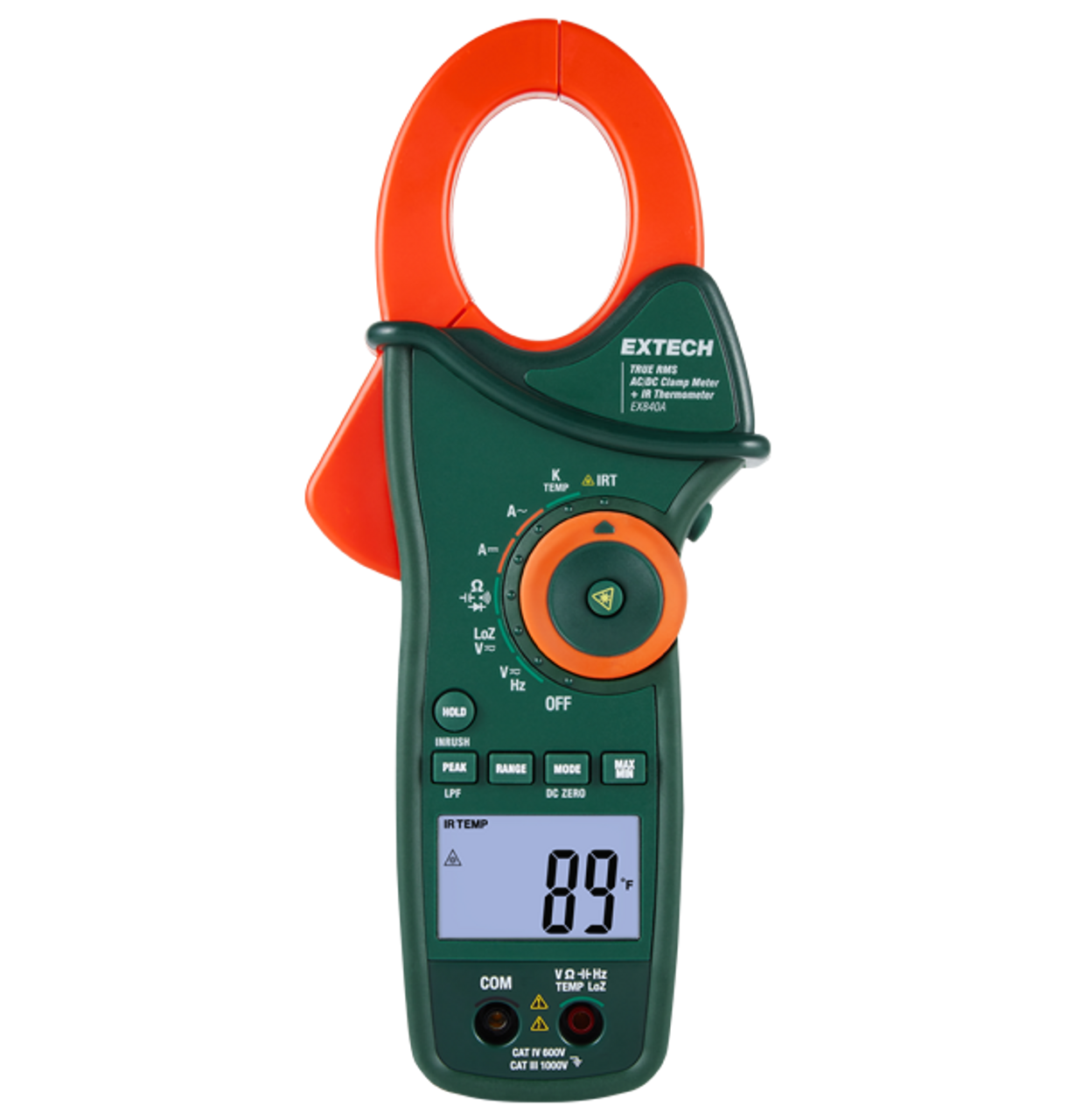

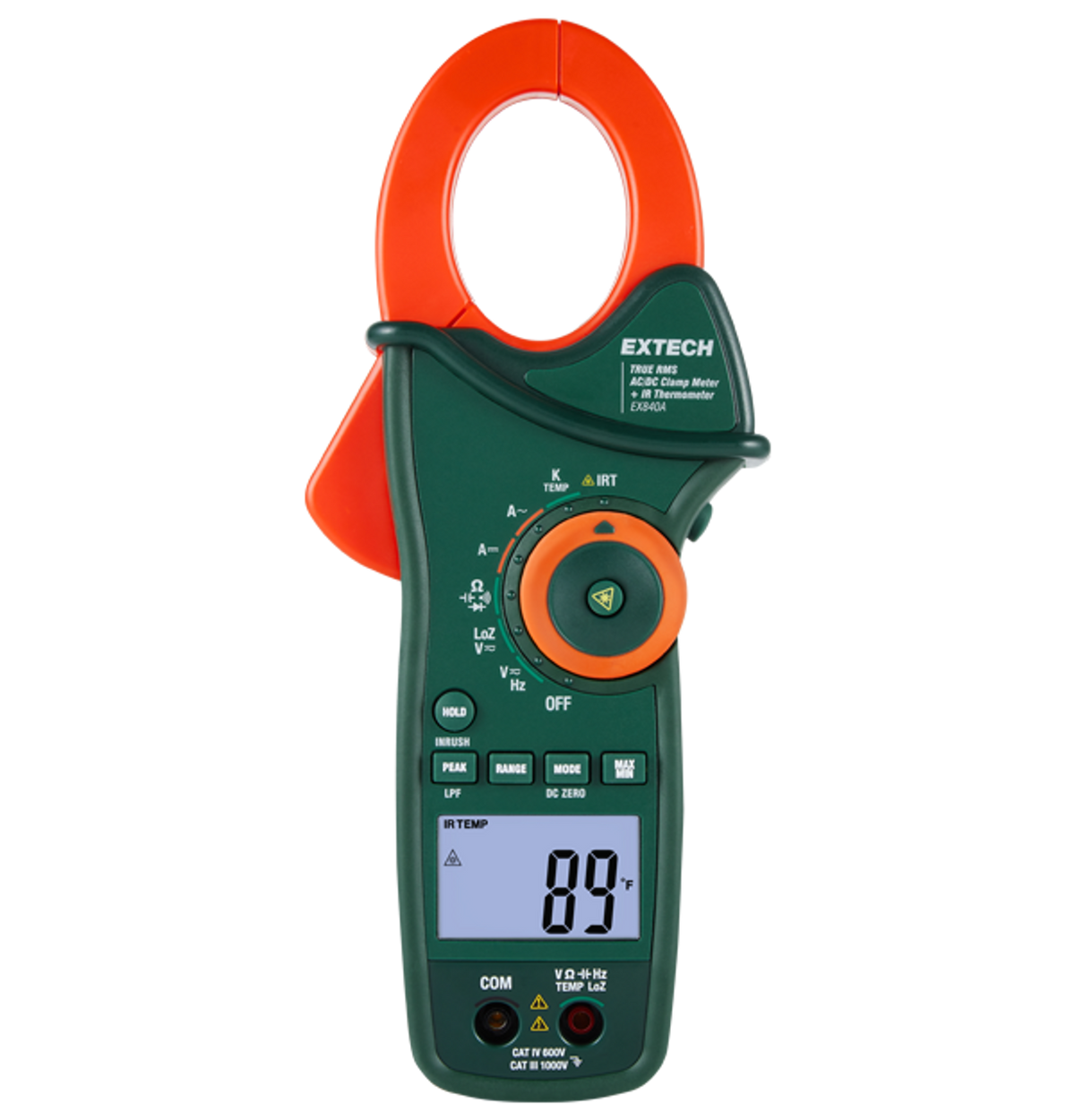

The EXTECH EX840A is a versatile 1000A AC/DC True RMS Clamp Meter that features a built-in infrared (IR) thermometer. This tool is designed for professionals who require accurate measurements of electrical parameters and non-contact temperature readings.
Features
- True RMS Measurements: Provides accurate AC and DC current and voltage measurements.
- Built-in IR Thermometer: Allows for non-contact temperature measurements ranging from -50°C to 270°C (-58°F to 518°F).
- Peak Hold Function: Captures inrush currents and transients for better analysis.
- Multimeter Functions: Includes measurements for AC/DC voltage, resistance, capacitance, frequency, diode, and continuity.
- Large Jaw Opening: The 1.7-inch (43mm) jaw can accommodate conductors up to 750 MCM or two 500 MCM conductors.
- Display: Features a 4000 count backlit display for easy reading in various lighting conditions.
- Data Hold and Min/Max Functions: Allows users to capture and hold readings for further analysis.
- Safety Rating: CAT IV 600V safety rating ensures safe operation in high-voltage environments.
Specifications
| Specification | Details |
|---|---|
| Model No | EX840A |
| AC Current | 0.1A to 1000A |
| DC Current | 0.1A to 1000A |
| AC Voltage | 0.1 mV to 1000V |
| DC Voltage | 0.1 mV to 1000V |
| Resistance | 0.1 ohms to 50 Mohms |
| Capacitance | 0.001 nF to 40 mF |
| Frequency | 0.001 Hz to 100 kHz |
| Type K Temperature Range | -20°C to 760°C (-4°F to 1400°F) |
| Infrared Temperature Range | -50°C to 270°C (-58°F to 518°F) |
| Display Counts | 4000 |
| Jaw Size | 43 mm (1.7 in.) |
| Auto Power Off | Yes |
