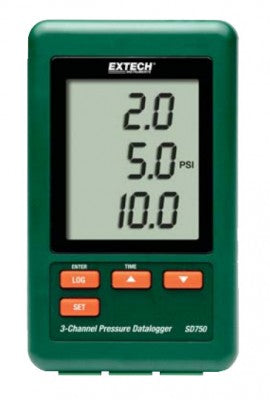

EXTECH 3-Channel Pressure Meter/Datalogger (SD750)
Regular price
1,599.29 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The EXTECH SD750 is a versatile 3-channel pressure meter and datalogger designed for monitoring and recording pressure levels from three different sources simultaneously. It is ideal for applications in hydraulic, pneumatic, and process gas systems.
Features
- Triple LCD Display: Simultaneously displays readings from three pressure channels in nine different units of measure.
- Data Logging: Date/time stamps and stores data on an SD card in Excel format for easy data transfer to a PC.
- Input Compatibility: Connects to installed transducers (up to 5000 psi with 4-20 mA output) or optional transducers with ranges of 30 psi, 150 psi, or 300 psi.
- User-Selectable Sampling Rate: Choose from 5, 10, 30, 60, 120, 300, 600 seconds, or automatic sampling.
- Included Accessories: Comes complete with six AAA batteries, a 2G SD card, a universal AC adaptor, three connectors, and a mounting bracket.
Specifications
| Specification | Details |
|---|---|
| Model No | SD750 |
| Pressure Measurement Range | Up to 300 psi |
| Display | Triple LCD |
| Input Signals | Linear 4-20 mA DC process signal |
| Accuracy | ± (0.5% + 2 digits) |
| Memory Card | SD memory card, 1 GB to 16 GB (4 GB maximum recommended) |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Operating Humidity | Less than 85% RH |
| Dimensions | 132 x 80 x 32 mm (5.2 x 3.1 x 1.3") |
| Weight | 199 g (0.44 lbs) |
