EXTECH 300A AC Analog Clamp Meter (AM300)

In stock
SKU: AM300
Regular price 415.80 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

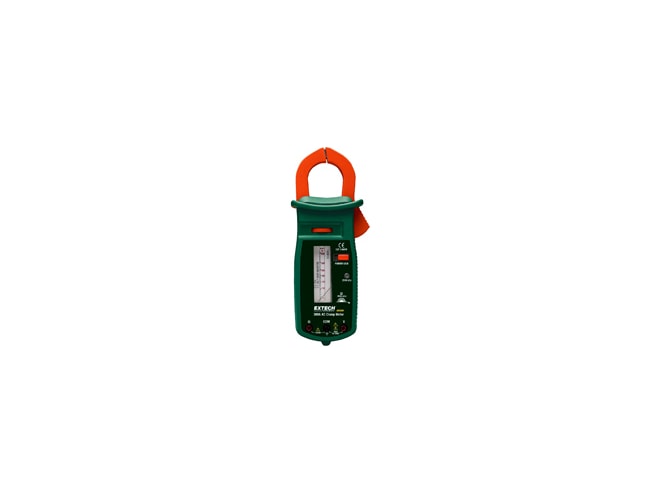

The EXTECH AM300 is a 300A AC analog clamp meter designed for measuring AC current in various electrical applications. It features a rotary scale and pointer lock for easy reading and operation.

Features
  • Current Measurement: Measures AC current up to 300A.
  • Jaw Size: Opens to 1.5 inches (38mm) to accommodate larger conductors.
  • Voltage and Resistance Measurement: Capable of measuring AC/DC voltage and resistance.
  • Pointer Lock Function: Freezes the reading for easy viewing.
  • Zero Adjust: Allows for calibration to ensure accurate readings.
  • Included Accessories: Comes complete with test leads, a 1.5V battery, and a carrying case.
Specifications
Specification Details
Model No AM300
AC Current Range Up to 300A
Jaw Opening 1.5" (38mm)
Voltage Measurement AC/DC
Resistance Measurement Yes
Weight 14.5 oz (410 g)
