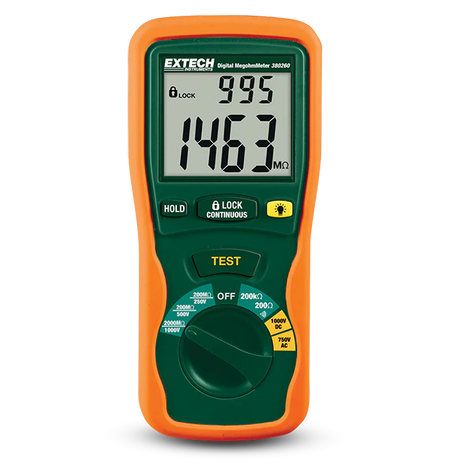

Extech 380260 Autoranging Digital Megohmmeter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
This autoranging megohmmeter measures insulation resistance up to 2000MΩ. Choice of 250, 500 or 1000VDC test voltages. The large backlit dual display indicates test voltage output and insulation resistance. Low resistance, continuity and AC/DC voltage measurement functions. Other features include automatic discharge at the end of test, protective holster with stand, power lock on feature and data hold. Complete with test leads, carrying case and 6 AA batteries.
Features
• Double molded housing for added durability
• Dual display of Insulation Resistance and Test Voltage
• Backlit super large display
• 250V, 500V, and 1000V test voltages
• Insulation Resistance to 2000MΩ
• Auto power off
• Lo Ωfunction for testing connections
• Lock Power On Function for hands-free operation
• Data Hold to freeze displayed reading
• Complete with heavy duty test leads, alligator
clip test lead, hanging strap, hard carrying case,
and 6 x AA batteries
Specifications
| Specification | Value |
|---|---|
| AC Voltage Test | Yes |
| Insulation Resistance | 200 MΩ, 2000 MΩ |
| Insulation Resistance Basic Accuracy | ±3% |
| Insulation Resistance Max Resolution | 0.1 MΩ |
| Insulation Test Voltage | 250 V, 500 V, 1000 V |
| Low Resistance | Yes |
| Certifications | CE |
| Dimensions | 7.8 × 3.6 × 1.9" (200 × 92 × 50 mm) |
| Display | Segment LCD with backlighting |
| Power | 6 × AA (1.5 V) batteries |
| Safety Category | CAT III - 1000 V |
| Warranty | 2 years |
| Weight | 24.6 oz (700 g) |
