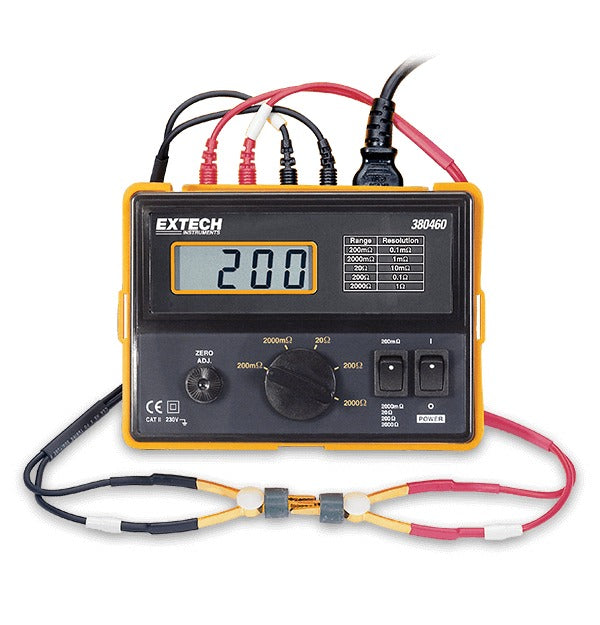

EXTECH 380460 is a Precision Milliohm Meter
Regular price
936.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
380460 is a Precision Milliohm Meter. High accuracy and performance for low resistance measurements. Portable milliohm meter provides resolution to 0.1mΩ. Compact, durable field service housing with protective cover. Manual zero display adjust and overrange indication. Complete with 4-wire cables with Kelvin clip connectors.
Features
• High accuracy and performance for
low resistance measurements
• Large 0.7" (18mm) LCD 1999 count
• Manual zero display adjust
• Overrange indication
• Compact, durable field service housing
with protective cover
• Complete with 4-wire cables
with Kelvin clip connectors
Specifications
| Specification | Range | Resolution | Max Voltage | Accuracy |
|---|---|---|---|---|
| Resistance | ||||
| 200m | 100μ | 3.8VDC | ±(0.75% + 4 d) | |
| 2000m | 1m | 3.4VDC | ±(0.75% + 2 d) | |
| 20 | 10m | 3.4VDC | ±(0.75% + 2 d) | |
| 200 | 100m | 3.2VDC | ±(0.75% + 2 d) | |
| 2k | 1 | 3.2VDC | ±(0.75% + 2 d) | |
| Power | 110VAC, 60Hz | |||
| 220VAC, 50Hz | ||||
| Dimensions | 6.3 x 2.8 x 3.4” (160 x 120 x 85 mm) | |||
| Weight | 1.5 lb (680 g) |
