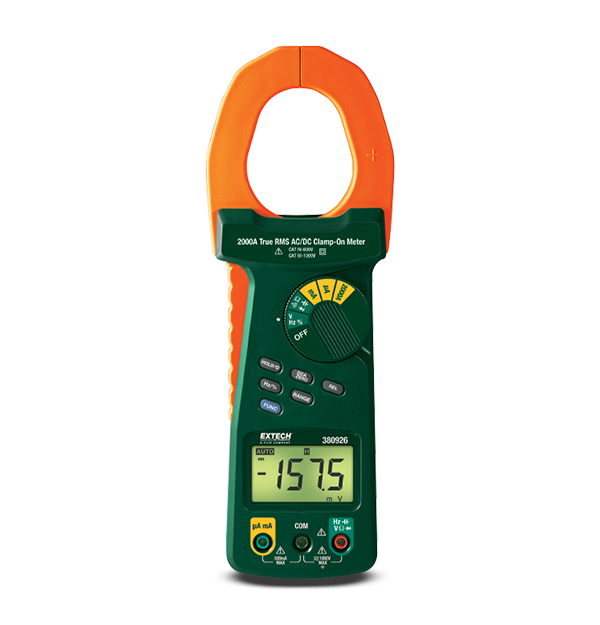

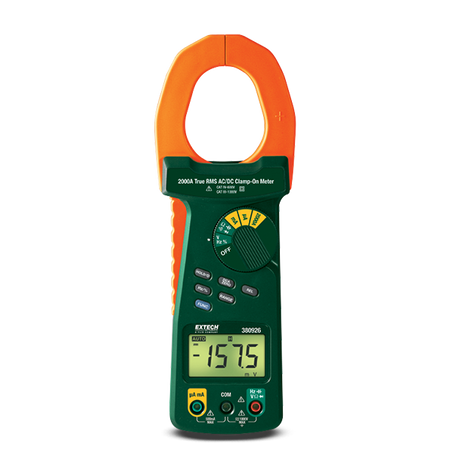

Extech 380926 2000A True RMS AC/DC Clamp Meter
Regular price
950.00 SR
Regular price
Sale
1,350.00 SR
Sale price
950.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech 380926 is a category IV, 2000-Amp, TRMS AC/DC clamp meter with a rugged 2 in. jaw to accommodate two 500 MCM cables. A built-in full-function DMM can measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode and continuity. Measurements are displayed on the large 4000 count backlit display for easy viewing in dimly lit areas. Additional features include DCA push button zero, Data Hold, and Relative function. Complete with test leads and 9V battery.
features
- Full function autoranging DMM includes
AC/DC Voltage and Current, Resistance, Capacitance,
Frequency, Duty Cycle, Diode and Continuity
- Current measurements to 2000A through
the clamp and 400mA via test leads
- Large 4000 count backlit display for high resolution
and easy viewing in dimly lit areas
- Basic DCV accuracy of 1% with 0.1mV resolution
and current resolution to 0.1μA
- Rugged 2" (50mm) jaws accomodate
one 2000MCM or two 500MCM cables
- Features include DCA push button zero,
Relative measurements and Data Hold
- Heavy duty ABS case with built-in stand
and thumb control function switch
- Complete with test leads and 9V battery
specification
| Specification | Value |
|---|---|
| AC Current | Clamp: 400A, 2000A; DMM: 400µA, 4000µA, 40mA, 400mA |
| AC Current Basic Accuracy | ±(2% of reading + 5 digits) |
| AC Current Max Resolution | Clamp: 0.1A; DMM: 0.1µA |
| AC Voltage | 4V, 40V, 400V, 1000V |
| AC Voltage Basic Accuracy | ±(1.2% of reading + 5 digits) |
| AC Voltage Max Resolution | 1mV |
| Capacitance | 50nF, 500nF, 5.0µF, 50µF |
| Capacitance Max Resolution | 10pF |
| Continuity | Yes |
| DC Current | Clamp: 400.0A, 2000A; DMM: 400µA, 4000µA, 40mA, 400mA |
| DC Current Basic Accuracy | ±(2% of reading + 5 digits) |
| DC Current Max Resolution | Clamp: 0.1A; DMM: 0.1µA |
| DC Voltage | 400mV, 4.0V, 40V, 400V, 1000V |
| DC Voltage Basic Accuracy | ±(1% of reading + 2 digits) |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | Yes |
| Duty Cycle | 1% to 99% |
| Duty Cycle Basic Accuracy | ±(1% of reading + 5 digits) |
| Duty Cycle Max Resolution | 0.1% |
| Frequency | 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 100kHz |
| Frequency Basic Accuracy | ±(1% of reading + 5 digits) |
| Frequency Max Resolution | 0.001Hz |
| Jaw Size | 2" (50mm), conductors up to 750MCM |
| Resistance | 400Ω, 4.0kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ |
| Resistance Max Resolution | 0.1Ω |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 10 × 2.9 × 1.5" (255 × 73 × 38mm) |
| Display | 5000-count segment LCD with backlighting |
| Power | 1 × 9V (1.5) battery |
| Safety Category | CAT IV-600V |
| Warranty | 2 years |
| Weight | 14oz (380g) |
