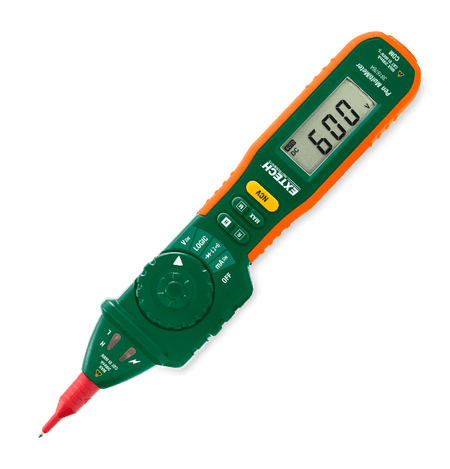

The Extech 381676A is a Pen Styled Multimeter with a Built in NCV detector. The 381676A features nine functions including AC/DC voltage to 600V, AC/DC Current to 200mA, Resistance, as well as Logic, Diode and Continuity tests. This meter has an easy to use rotary dial with alligator clips for one handed operation. Its convenient built in non-contact voltage detector allows for quick detection of live voltage. The 381676 comes complete with test leads, alligator clips, batteries and manual.
Features
• Fully loaded pen-style meter with 9 functions
• Ergonomic housing with easy one-hand operation
rotary function dial
• Built-in Non-Contact Voltage (NCV) detection with
visible and audible alarm
• Autoranging with Data Hold, Range Hold, and
Maximum Hold features
• Large 2000 count high contrast LCD display
• Auto Power Off to conserve battery life
• Overrange and low battery indication
• CAT III-600V
• Complete with test leads (one built-in tip and one
remote with cable), two alligator clips, and two
1.5V AAA batteries
Specifications
| Specification | Value |
|---|---|
| AC Current | 20 mA, 200 mA |
| AC Current Basic Accuracy | ±2% |
| AC Current Max Resolution | 0.01 mA |
| AC Voltage | 200 mV, 2 V, 20 V, 200 V, 600 V |
| AC Voltage Basic Accuracy | ±0.8% |
| AC Voltage Max Resolution | 0.1 mV |
| Continuity | Audible beeper < 50 Ω |
| DC Current | 20 mA, 200 mA |
| DC Current Basic Accuracy | ±1.5% |
| DC Current Max Resolution | 0.01 mA |
| DC Voltage | 200 mV, 2 V, 20 V, 200 V, 600 V |
| DC Voltage Basic Accuracy | ±0.7% |
| DC Voltage Max Resolution | 0.1 mV |
| Diode Test | 1 mA @ 1.5 V approx |
| Logic Test | 0 to 1.5 V (Green LED), 1.5 to 3.5 V (LED Off), 3.5 to 5 V (Red LED) |
| Non-Contact Voltage (NCV) Detector | > 110 VAC |
| Resistance | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ |
| Resistance Max Resolution | 0.1 Ω |
| Certifications | CE |
| Dimensions | 8.2 × 1.5 × 1.1” (208 × 38 × 29 mm) |
| Power | 2 × AAA (1.5 V) batteries |
| Safety Category | CAT III - 600 V |
| Warranty | 2 years |
| Weight | 4.6 oz (129 g) |
