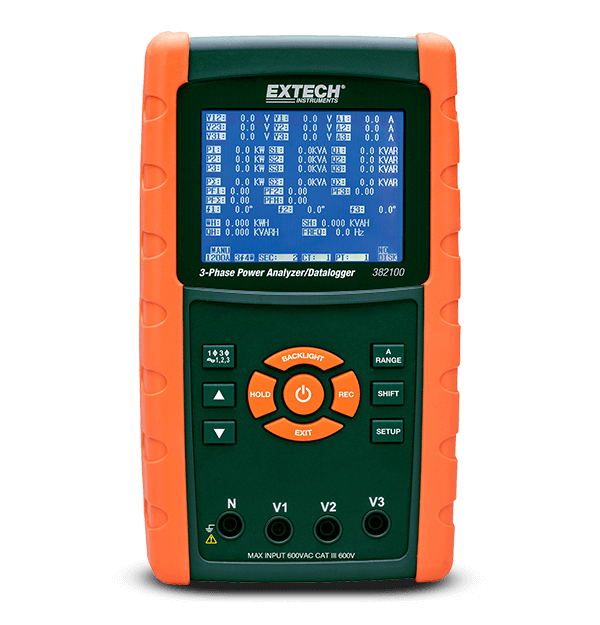

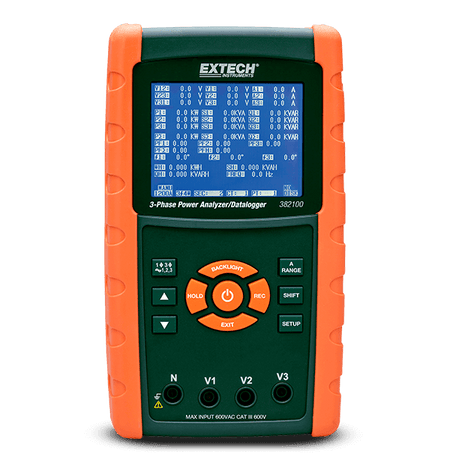

Extech 382100 is a 3-Phase Power Analyzer/Datalogger
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech 382100 is a 3-Phase Power Analyzer/Datalogger that saves data (up to 30,000 sets of measurements) on an SD card in Excel format for easy transfer to your PC. It provides a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground), A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. Readings are displayed on a large, dot matrix, sun-readable, backlit LCD. It comes with three current clamps, four voltage leads with alligator clips, eight AA batteries, SD memory card, Universal AC adapter (100 to 240 V), case, and user manual.
Features
• Large dot-matrix, sun-readable, numerical, backlit LCD
• Full system analysis with up to 35 parameters
- V (phase-to-phase), V (phase-to-ground)
- A (phase-to-ground)
- KW / KVA / KVAR / PF (phase)
- KW / KVA / KVAR / PF (system)
- KWH / KVAH / KVARH / PFH (system)
- Phase angle
• High accuracy autoranging current clamps
(0.2A to 1200A)
• 600.0VAC input with CAT III-600V safety rating
• Adjustable Current Transformer (CT) and
Potential Transformer (PT) ratio for high
power distribution systems
• Log up to 30,000 reading on a removable SD memory
card in Microsoft Excel® format
• Wide sampling rate range (2 seconds to 2 hours)
• Captured measurements can be imported
directly into Excel via the SD memory card
• Easy-to-use onscreen menu
• Easy-to-grab rugged over molded housing
Specifications
| Specification | Value |
|---|---|
| AC Current | 1200A |
| AC Current Basic Accuracy | ±(0.5% of reading + 0.5A) |
| AC Voltage | 600.0V |
| AC Voltage Basic Accuracy | ±(0.5% of reading + 0.5V) |
| Active Power | 9.999MW |
| Active Power Basic Accuracy | ±(1.0% of reading + 0.08KW) |
| Active Power Energy | 0.0kWh to 9.999MWHr |
| Active Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KWh) |
| Apparent Power | 9.999MVA |
| Apparent Power Basic Accuracy | ±(1.0% of reading + 0.08KVA) |
| Apparent Power Energy | 0.0KVAh to 9.999MVAh |
| Apparent Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KVAh) |
| Frequency | 45Hz to 65Hz |
| Frequency Basic Accuracy | ±0.1Hz |
| Memory | 60,000 readings (2GB SD card) |
| Phase | -180° to +180.0° |
| Phase Basic Accuracy | ±1° |
| Power Factor | 0.00 to 1.00 |
| Power Factor Basic Accuracy | ±0.04 |
| Reactive Power | 9.999MVAR |
| Reactive Power Basic Accuracy | ±(1.0% of reading + 0.08KVAR) |
| Reactive Power Energy | 0.0kVARh to 9.999MVARh |
| Reactive Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KVARh) |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 8.9 × 2.5 × 1.3 in (225 × 125 × 64 mm) |
| Safety Category | CAT III-600V |
| Warranty | 2 years |
| Weight | Meter: 2.3 lbs (1049 g); Clamp: 1.2 lbs (522 g) |
