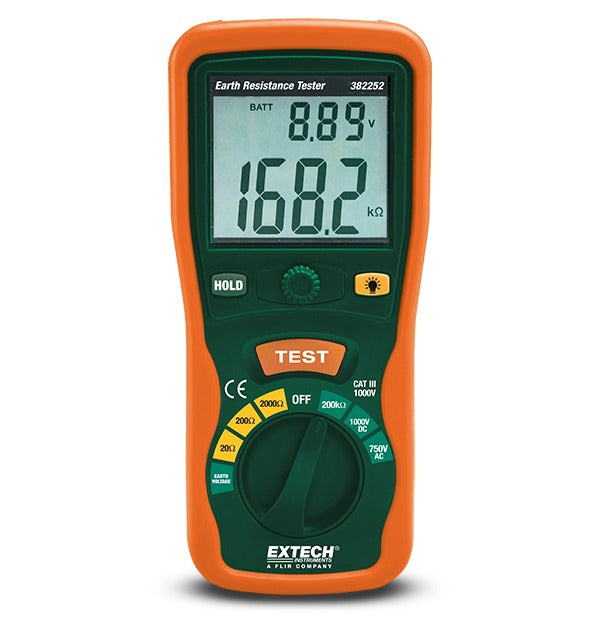

Extech 382252 Earth Ground Resistance Tester Kit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The 382252 is an Earth Ground Resistance Tester Kit which includes all hardware necessary to measure earth ground in 3 ranges from 20 to 2000 Ohms. Also tests AC/DC Voltage, resistance and continuity. Featuring Automatic zero adjustment and three earth ground resistance ranges 20Ω/200Ω/2000Ω. Complete with test leads, 2 auxiliary earth bars, carrying case, protective rubber holster and six 1.5V AA batteries.
Features
• Large dual display with backlight
• Test Hold function for easy operation
• Automatic Zero adjustment
• AC/DC Voltage, Resistance, and Continuity
• Auto Power off
• Overrange and low battery indication
• Complete with test leads, 2 auxiliary earth bars,
carrying case, protective rubber holster and six 1.5V
AA batteries
Specifications
| Specification | Value |
|---|---|
| AC Voltage | 0 to 750V |
| AC Voltage Basic Accuracy | 1V |
| Continuity | 40Ω |
| DC Voltage | 0 to 1000V |
| DC Voltage Basic Accuracy | ±(0.8% of reading + 3 digits) |
| Earth Ground Resistance | 20Ω / 200Ω / 2000Ω |
| Earth Ground Resistance Basic Accuracy | ±(2% of reading + 2 digits) |
| Earth Ground Resistance Max Resolution | 0.01Ω / 0.1Ω / 1Ω |
| Earth Voltage | 0 to 200 VAC (50 to 400 Hz frequency) |
| Earth Voltage Basic Accuracy | ±(3% of reading + 3 digits) |
| Earth Voltage Max Resolution | 0.1V |
| Resistance | 0 to 200 kΩ |
| Test Current | <2.5 mA |
| Test Frequency | 820 Hz |
| Certifications | CE |
| Dimensions | 7.9 × 3.6 × 2" (200 × 92 × 50 mm) |
| Power | 6 × AA (1.5V) batteries |
| Safety Category | CAT III-1000V |
| Warranty | 2 years |
| Weight | 1.5 lbs (700 g) |
