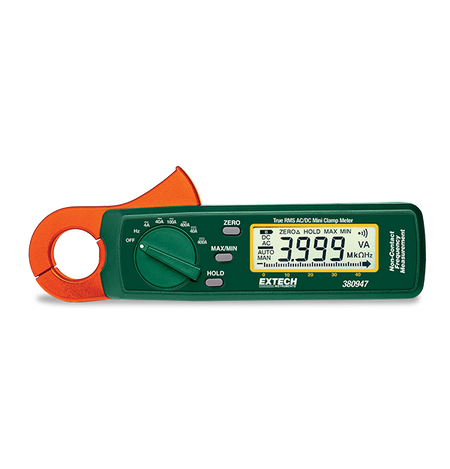

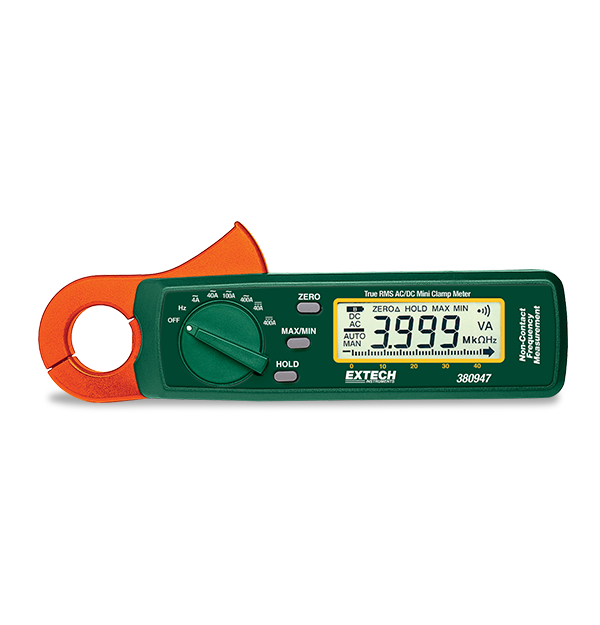

EXTECH 400A AC/DC True RMS Mini Clamp Meter (380947)

Out of stock
SKU: 380947
Regular price 1,054.80 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The EXTECH 380947 is a compact mini clamp meter designed for measuring AC and DC currents up to 400A. It features True RMS technology, ensuring accurate readings for both sinusoidal and non-sinusoidal waveforms, making it suitable for various electrical applications.

Features
  • Measurement Capabilities:
    • AC Current: 4A, 40A, 100A, 400A
    • DC Current: 40A, 400A
    • Frequency Measurement: Up to 10kHz
  • High Resolution:
    • AC Current: 0.001A resolution
    • DC Current: 0.01A resolution
    • Frequency: 0.01Hz resolution
  • Compact Design: The small jaw size (0.9 inches) allows for easy access to tight spaces and conductors up to 4/0 AWG.
  • User-Friendly Features: Includes a 4000-count segment LCD display, data hold function, and a low battery indicator.
  • Safety Rating: CAT III-300V safety rating for added protection during measurements.
Specifications
Specification Details
Model No 380947
AC Current Range 4A, 40A, 100A, 400A
DC Current Range 40A, 400A
Frequency Range Up to 10kHz
Jaw Size 0.9" (23mm)
Display 4000-count segment LCD
Safety Category CAT III-300V
Warranty 2 years
Weight 8 oz (225g)
