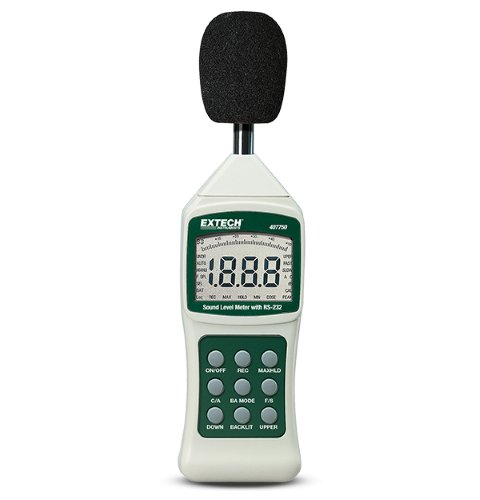

Extech 407750 Sound Level Meter with PC Interface
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The 407750 Sound Level Meter with PC Interface has a large backlit display, PC Interface and background sound absorber for noise measurements with high ambient noise levels. It features A/C Weighting, fast/slow response time, Min/Max, and analog AC/DC outputs for connection to a recorder. Complete with microphone wind screen, 9V battery and case.
Features
-
Auto/Manual ranging from 30 to 130dB in 6 ranges
-
Meets ANSI and IEC Type 2 standards
-
A and C selectable frequency weightings
-
Fast and Slow selectable response times
-
Background noise absorber mode for machine noise measurements filters ambient noise
-
Large 3 1/2 digit display with 0.1dB resolution with backlighting and analog bargraph
-
Electret condenser microphone provides 1.5dB accuracy
-
Min/Max plus analog output and tripod mount
-
Max Hold latches maximum value on display
-
RS-232 interface for capturing data directly on a PC, optional Windows® compatible software
-
Complete with batteries and carrying case
Specification
-
Digital Display: 3-1/2 digit (1999 count) Autorange LCD
-
Bargraph Display: 50dB display range (1dB resolution)
-
Measurement Range: 30 to 130dB (35 to 130dB for “C” weighting)
-
Resolution: 0.1dB
-
Accuracy: ±1.5 dB @ 94dB for a 1kHz sine wave
-
Microphone: Electret Condensor .24"(6mm dia.) type
-
Frequency Weighting: “A” and “C” type
-
Time Response: Slow/Fast Sampling time updates every 0.5seconds
-
Measurement frequency range: 31.5Hz to 8KHz
-
Analog output: AC 0.707Vrms (full scale); DC: 10mVDC/dB
-
Applicable Standards: IEC 651 Type 2, ANSI S1.4 Type 2
-
Power Supply: 9V battery , optional AC adaptor
-
Dimensions: 10 x 3.1 x 1.5"(256 x 80 x 38mm)
-
Weight: 8.5oz. (240g)
