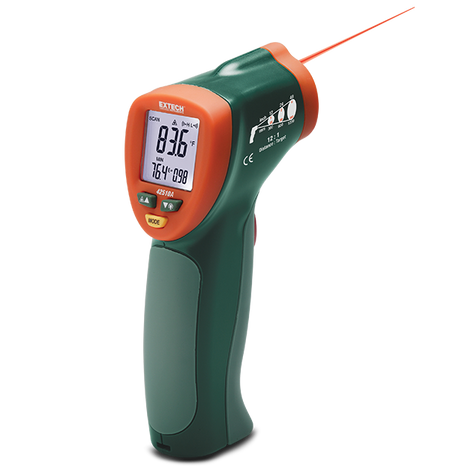

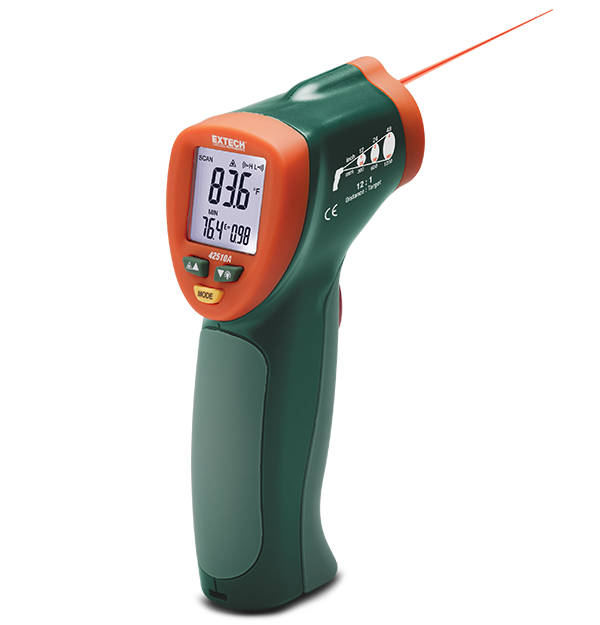

Extech 42510A Wide Range Mini IR Thermometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech 42510A Wide Range Mini IR Thermometer measures temperature from -50°C to 650°C (-58°F to 1200°F) with 0.1 degree resolution for readings up to 999.9 degrees. The adjustable high/low set points with audible alarm alerts users when temperatures exceed the programmed set points. It features adjustable emissivity for better accuracy on a variety of surfaces. Its built-in laser pointer can help identify target areas. Built in backlighting illuminates the display for taking measurements at night or in areas with low background light levels. 12:1 distance to target ratio. Comes with data hold, min/max, over range indicator, and auto power off functions. Complete with 9 V battery and pouch case.
Features
- Compact thermometer measures temperature
from -58 to 1200°F (-50 to 650°C) with 0.1°
resolution up to 999.9°
- Adjustable High/Low setpoints with audible
alarm alerts user when temperature exceeds
the programmed setpoints
- Adjustable emissivity for better accuracy
on different surfaces
- Built-in laser pointer identifies target area
- Backlighting illuminates display for taking
measurements at night or in areas with low
background light levels
- 12:1 distance to target ratio
- Data Hold and Min/Max
- Overrange indicator
- Auto power off
- Complete with 9V battery and pouch case
Specification
| Specification | Value |
|---|---|
| AC Voltage | 0 to 750V |
| AC Voltage Basic Accuracy | 1V |
| Acceleration | 656ft/s² (200m/s²) |
| Acceleration Basic Accuracy | ±5% |
| Acceleration Max Resolution | 2ft/s² (0.5m/s²) |
| Continuity | 40Ω |
| DC Voltage | 0 to 1000V |
| DC Voltage Basic Accuracy | ±(0.8% of reading + 3 digits) |
| Displacement | 0.078in (1.999mm) |
| Displacement Basic Accuracy | ±5% |
| Displacement Max Resolution | 0.001in (0.001mm) |
| Distance to Target Ratio | 12:1 |
| Earth Ground Resistance | 20Ω/200Ω/2000Ω |
| Earth Ground Resistance Basic Accuracy | ±(2% of reading + 2 digits) |
| Earth Ground Resistance Max Resolution | 0.01Ω/0.1Ω/1Ω |
| Earth Voltage | 0 to 200VAC (50 to 400Hz frequency) |
| Earth Voltage Basic Accuracy | ±(3% of reading + 3 digits) |
| Earth Voltage Max Resolution | 0.1V |
| Emissivity | 0.10 to 1.00, adjustable |
| Repeatability | ±0.5% or ±1.8 °F/ °C |
| Resistance | 0 to 200kΩ |
| Targeting | single laser |
| Temperature (IR) Basic Accuracy | -25 to 1200 °F (-50 to 650 °C) |
| Temperature (IR) Max Resolution | ±(1% of reading + 2 °F/1 °C) |
| Temperature (RTD) | 0.1 °F/ °C; 1 °F/ °C |
| Test Current | <2.5mA |
| Test Frequency | 820Hz |
| Velocity | 7.87in/s (200mm/s) |
| Velocity Basic Accuracy | ±5% |
| Velocity Max Resolution | 0.02in/s (0.5mm/s) |
| Certifications | CE |
| Dimensions | 3.2 × 1.6 × 6.3" (82 × 42 × 160mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 6.4oz (180g) |
