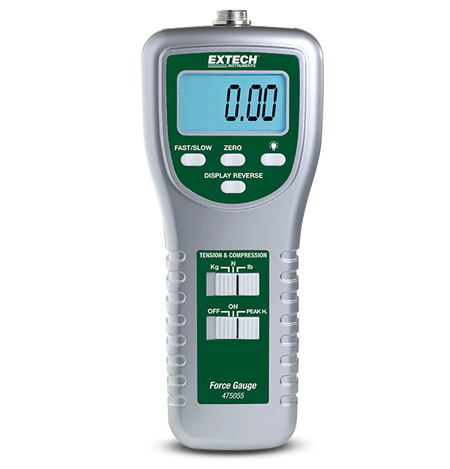

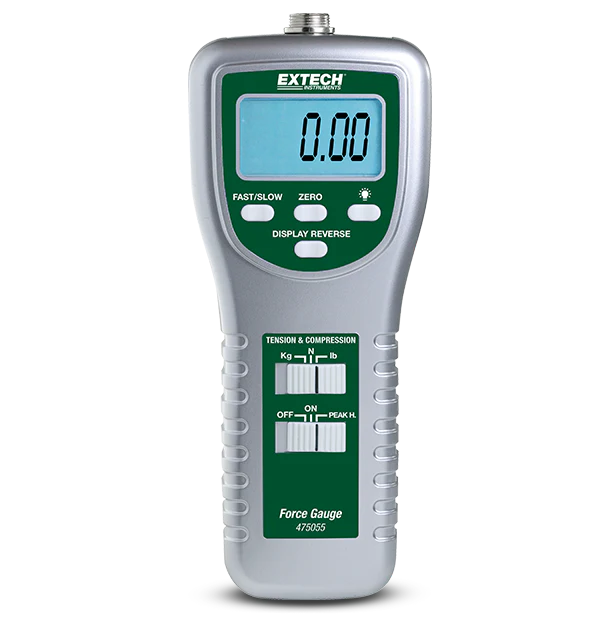

475055 is a High Capacity Force Gauge. Measuring ranges from 0.05 to 100-kilograms, 0.05 to 220-pounds, 0.2 to 980 Newton. Basic accuracy of 0.5-percent. Tension or Compression, Peak hold and Zero functions. Positive/Reverse display for easy readability. Large LCD with back light feature. Complete with tension and compression adaptors, 6 AA batteries and case.
Features
• Ranges: 0.05 to 100kg
0.05 to 220lbs
0.2 to 980 Newton
• Basic accuracy of 0.5%
• Tension or Compression, Peak hold and Zero functions
• Positive/Reverse display for easy readability
• Large LCD with back light feature
• Complete with tension and compression
adaptors, six AA 1.5V batteries, and case
Specifications
| Specification | Value |
|---|---|
| Force | 220 lbs, 100 kg, 980 Newtons |
| Force Basic Accuracy | ±(0.5% rdg) |
| Force Max Resolution | 0.05 lbs, 0.05 kg, 0.2 Newtons |
| Full Scale Detection | <1 mm |
| Overload Capacity | 150 kg |
| Transducer Type | Load cell |
| Update Rate | Fast mode 0.2 seconds; Slow mode 0.6 seconds |
| Certifications | CE |
| Dimensions | 8.5 × 3.5 × 1.8" (215 × 90 × 45 mm) |
| Power | 6 × AA (1.5 V) batteries |
| Warranty | 2 years |
| Weight | 1 lb (450 g) |
