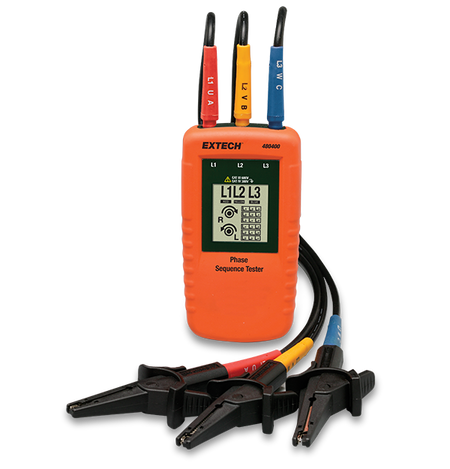

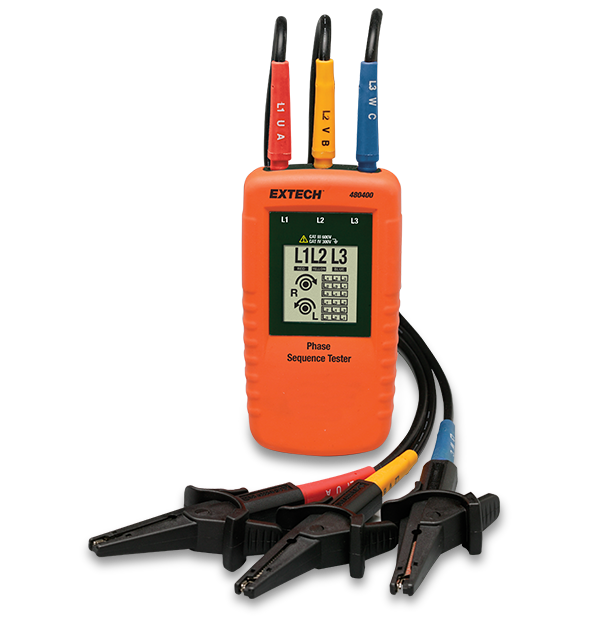

The 480400 Phase Sequence Tester has a 40 to 600-Volt rated range for testing phase orientation of 3-phase power sources over a 15 to 400Hz frequency range. Multiline graphical LCD indicates phase orientation (clockwise or counter-clockwise) and whether each of the phases is live. No battery required. Comes complete with cable, three large color coded alligator clips, and pouch case.
Features
• 40 to 600VAC rated test range for testing phase
orientation of three phase power sources over
15 to 400Hz frequency range
• Graphical multiline LCD indicates phase orientation
(clockwise or counter-clockwise) and whether each
of the three phases is live
• Durable housing is double molded
• Easy to open alligator clips with wide jaws
• Tests phase orientation of three phase power sources
• No battery required
• Dimensions: 5.1 x 2.7 x 1.25" (130 x 69 x 32mm);
Weight: 4.5oz (130g)
• Complete with cable, three large color coded
alligator clips, and soft case
Specifications
| Specification | Value |
|---|---|
| AC Voltage | 40 to 600V AC |
| Frequency | 15 to 400 Hz |
| Phase Sequence | Yes |
| Certifications | CE |
| Dimensions | 5.1 × 2.7 × 1.25" (130 × 69 × 32 mm) |
| Safety Category | CAT III - 600V |
| Warranty | 2 years |
| Weight | 4.5 oz (130 g) |
