EXTECH 80A AC/DC Mini Clamp Meter (380950)
Regular price
550.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

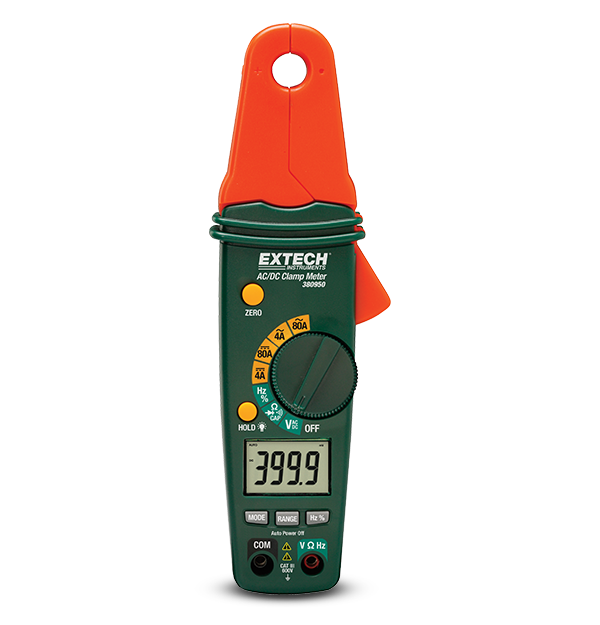

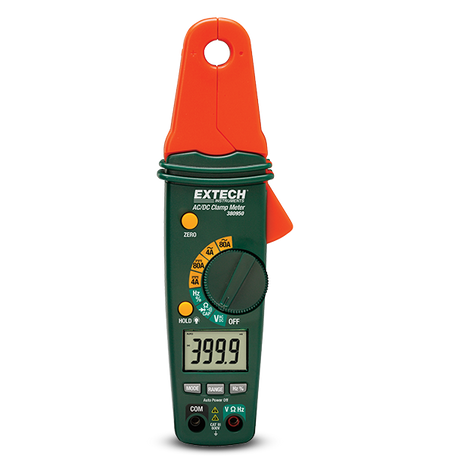

The EXTECH 380950 is a compact mini AC/DC clamp meter designed for measuring current in tight spaces. It features a small diameter jaw that allows for easy access to conductors, making it ideal for various applications including plant maintenance, HVAC, and automotive work.
Features
- Current Measurement: Measures AC and DC current up to 80A.
- Voltage Measurement: Measures AC and DC voltage from 400mV to 600V.
- Resistance Measurement: Measures resistance from 400Ω to 40MΩ.
- Frequency Measurement: Measures frequency from 5Hz to 10MHz.
- Diode Test and Continuity: Includes functions for diode testing and continuity checking.
- Duty Cycle Measurement: Measures duty cycle from 5% to 99.9%.
- Compact Design: Lightweight and portable, weighing only 7oz (200g).
Specifications
Specification | Details |
---|---|
Model No | 380950 |
AC Current Range | 4A to 80A |
DC Current Range | 4A to 80A |
AC Voltage Range | 400mV to 600V |
DC Voltage Range | 400mV to 600V |
Resistance Range | 400Ω to 40MΩ |
Frequency Range | 5Hz to 10MHz |
Display | 4000-count segment LCD |
Dimensions | 8.2 × 2.7 × 1.4 inches |
Safety Category | CAT III-300V |
Warranty | 2 years |
