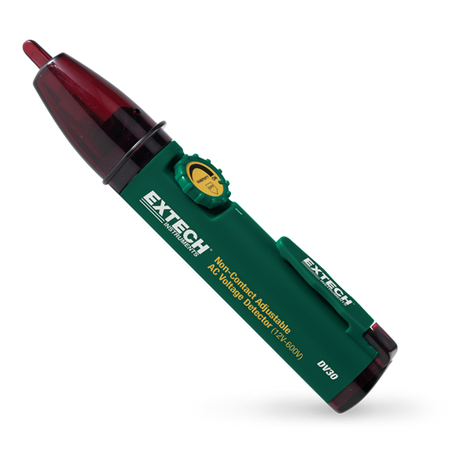

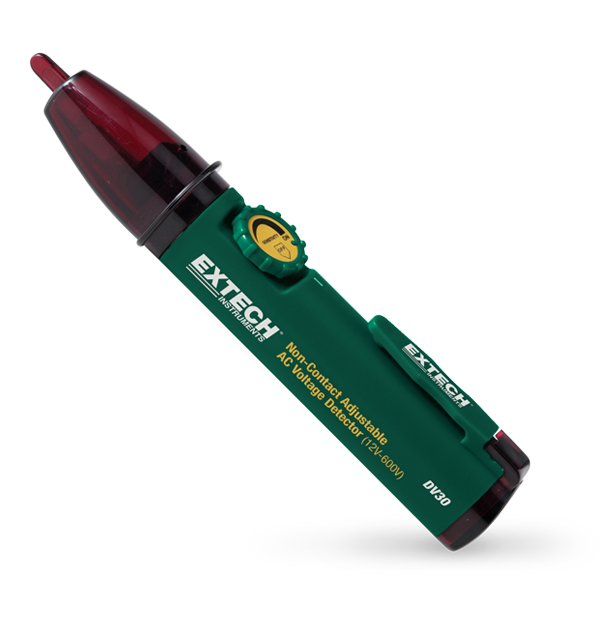

EXTECH Adjustable AC Voltage Detector with Sensitivity (DV30)

Out of stock
SKU: DV30
Regular price 55.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The EXTECH DV30 is a non-contact AC voltage detector that features adjustable sensitivity, allowing users to pinpoint voltage sources effectively. It is designed for safety and convenience in electrical testing.

Features
  • Voltage Detection Range: Detects AC voltage from 12V to 600VAC.
  • Sensitivity Adjustment: Users can adjust the sensitivity to increase or decrease the sensor trigger threshold.
  • Audible and Visible Indication: Equipped with a beeper and a flashing LED to indicate the presence of voltage.
  • Frequency Bandwidth: Operates within a frequency range of 50 to 500Hz.
  • Safety Rating: CAT III-600V safety rating ensures it can be used in various electrical environments.
  • Power Supply: Powered by four LR44 button batteries, included with the device.
  • Compact Design: Lightweight and portable, with dimensions of 6.3 × 0.75 × 1 inches (155 × 28 × 25mm) and a weight of 2oz (42g).
Specifications
Specification Details
Model No DV30
Voltage Detection Range 12 to 600V AC
Sensitivity Adjustment Yes
Frequency Bandwidth 50 to 500Hz
Audible/Visible Indication Beeper, flashing LED
Safety Category CAT III - 600V
Power Supply 4 × LR44 (1.5V) batteries
Dimensions 6.3 × 0.75 × 1 inches
Weight 2oz (42g)
