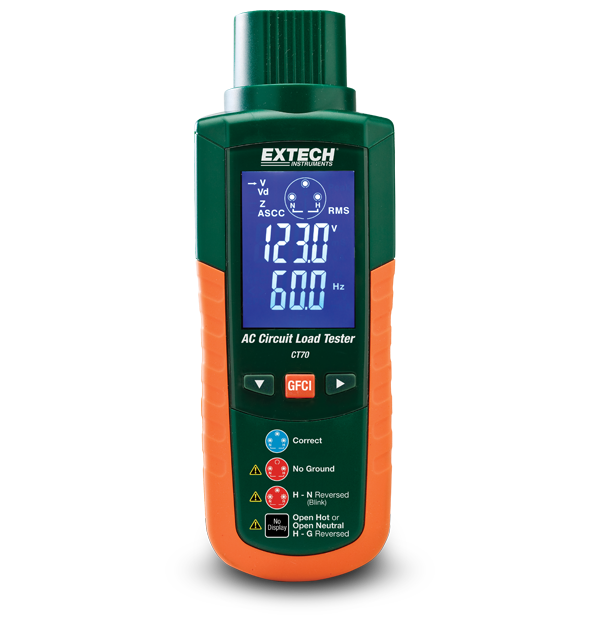

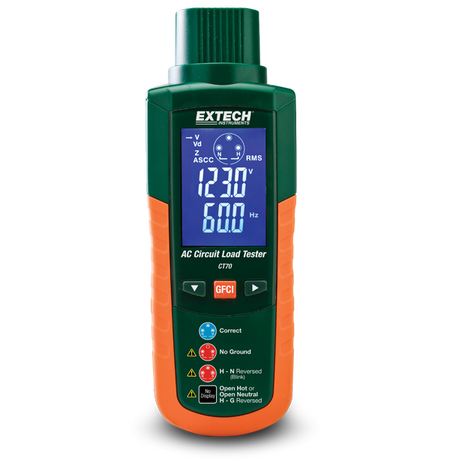

EXTECH AFCI, GFCI, and AC Circuit Analyzer (CT70)
Regular price
745.70 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The EXTECH CT70 is a comprehensive GFCI and AC circuit analyzer designed to identify circuit and wiring issues that can lead to shock hazards and affect the performance of electrical equipment. This tool is essential for electricians and technicians who need to ensure the safety and functionality of electrical systems.
Features
- AC Load Testing: Selectable loads of 12, 15, and 20 Amps.
- Voltage Measurements: Measures loaded and unloaded AC line voltage.
- Voltage Drop Calculations: Calculates voltage drop and line impedance.
- Outlet Testing: Tests for neutral to ground voltage, hot, neutral, and ground impedance.
- GFCI Testing: Measures GFCI trip time and trip current, and checks for open or reversed wiring.
- Included Accessories: Comes with an AC test cord featuring a standard North American 3-prong plug.
Specifications
Specification | Details |
---|---|
Model No | CT70 |
AC Voltage Range | 90.0 to 240.0V |
Frequency | 45.0 to 65.0Hz |
Peak Line Voltage | 350.0V |
Voltage Drop | 0.1 to 99.9% |
Dimensions | 8 × 2.8 × 2 inches |
Weight | 11.2oz (317.5g) |
Safety Category | CAT II - 300V |
Warranty | 2 years |
