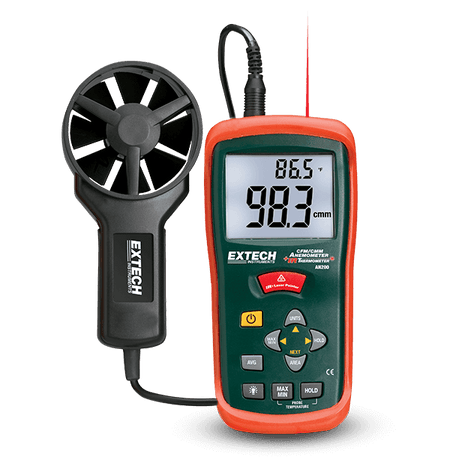

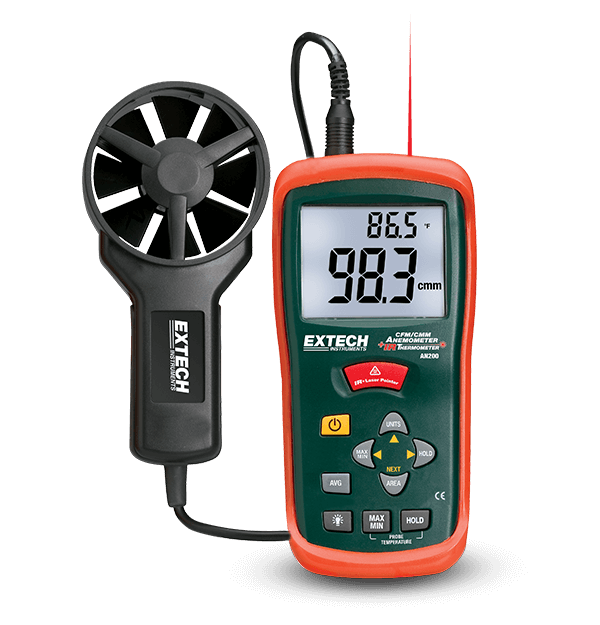

AN200 is a CFM/CMM Mini Thermo-Anemometer with built-in InfraRed Thermometer. Built-in non-contact IR Thermometer measures remote surface temperatures to 500°F (260°C) with 8:1 distance to spot ratio and Laser Pointer. This CFM/CMM Thermo-Anemometer can simultaneously display of Air Flow or Air Velocity plus Ambient Temperature. Easy to set area dimensions (ft² or m²) are stored in the meter’s internal memory for the next power on. Additional features include: 20 point average for Air Flow and 3% velocity accuracy via low friction 2.83 in.D (72mm) ball bearing vane wheel on 3.9ft (120cm) cable. Comes complete with 9-Volt battery, protective rubber holster, and case.
Features
• Model AN100 — CFM/CMM Thermo-Anemometer
• Model AN200 — CFM/CMM Thermo- Anemometer
with built-in non-contact IR Thermometer measures
remote surface temperatures to 500°F (260°C) with an
8:1 distance-to-spot ratio and Laser Pointer
• Simultaneous display of Ambient Temperature and
Air Flow or Air Velocity
• Up to 8 easy to set Area dimensions (ft
2 or m2
) are
stored in the meter’s internal memory
• 20 point average function for Air Flow
• Super large LCD Backlit Display
• 3% velocity accuracy via low friction 2.83"D (72mm)
ball bearing vane wheel on 3.9ft (120cm) cable
• Data Hold and MIN/MAX
• Auto Power off
• Complete with vane sensor with 3.9ft (120cm) cable,
9V battery, protective rubber holster, and carrying case
Specifications
| Specification | Value |
|---|---|
| Air Velocity (ft/min) | 80 to 5906 ft/min |
| Air Velocity (ft/min) Basic Accuracy | ±3% ft/min |
| Air Velocity (ft/min) Max Resolution | 1 ft/min |
| Air Velocity (km/h) | 1.4 to 108.0 km/h |
| Air Velocity (km/h) Basic Accuracy | ±3% km/h |
| Air Velocity (km/h) Max Resolution | 0.1 km/h |
| Air Velocity (knots) | 0.8 to 58.3 knots |
| Air Velocity (knots) Basic Accuracy | ±3% knots |
| Air Velocity (knots) Max Resolution | 0.1 knots |
| Air Velocity (m/s) | 0.40 to 30.00 m/s |
| Air Velocity (m/s) Basic Accuracy | ±3% m/s |
| Air Velocity (m/s) Max Resolution | 0.01 m/s |
| Air Velocity (mph) | 0.9 to 67.2 mph |
| Air Velocity (mph) Basic Accuracy | ±3% mph |
| Air Velocity (mph) Max Resolution | 0.1 mph |
| Air Volume (CFM) | 0 to 999,999 CMM (m³/min) |
| Air Volume (CFM) Max Resolution | 0.1 |
| Air Volume (CMM) | 0 to 999,999 CFM (ft³/min) |
| Air Volume (CMM) Max Resolution | 0.1 |
| Temperature (Air) | 14 to 140˚F (-10 to 60˚C) |
| Temperature (Air) Basic Accuracy | ±6.0˚F (±3˚C) |
| Temperature (Air) Max Resolution | 0.1˚F/˚C |
| Temperature (IR) Basic Accuracy | -58 to 500˚F (-50 to 260˚C) |
| Temperature (IR) Max Resolution | ±9.0˚F/5.0˚C (< -4°F); ±2% of reading or ±4˚F/2°C (> -4°F) |
| Temperature (RTD) | 0.1˚F (< -4°F); 1˚F (> -4°F) |
| Certifications | CE |
| Dimensions | 7 × 2.9 × 1.3" (178 × 74 × 33 mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 1.6 lbs (700 g) |
