EXTECH Analog High Voltage Megohmmeter (380320)
Regular price
827.16 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

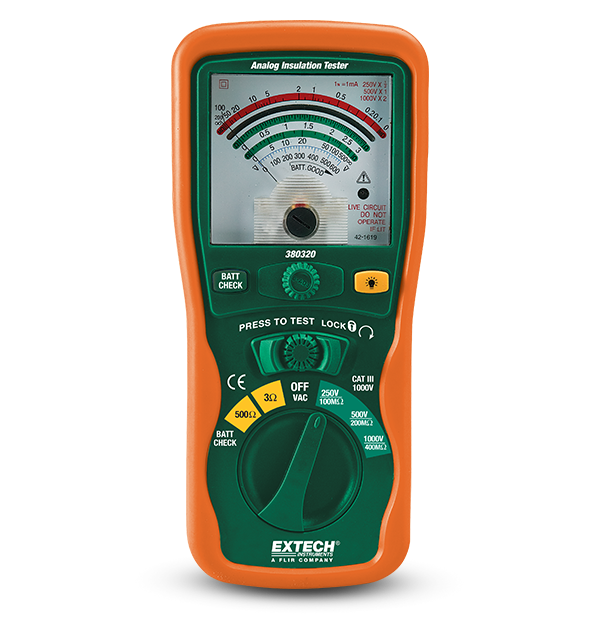

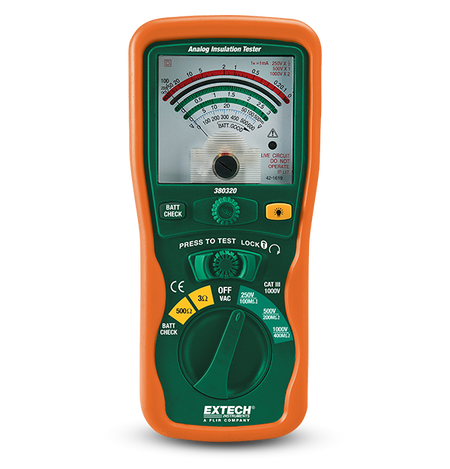

The EXTECH 380320 is an Analog Insulation Tester designed for measuring insulation resistance up to 400 MΩ. It features a large, easy-to-read analog display and is equipped with several safety and convenience features, making it suitable for various electrical testing applications.
Features
- Insulation Resistance Measurement: Measures up to 400 MΩ with selectable test voltages of 250V, 500V, and 1000V.
- AC Voltage Measurement: Measures AC voltage from 0 to 600V with an accuracy of ±5% of the scale.
- Live Circuit Warning: Alerts the user to the presence of live circuits, displaying actual AC voltage measurements.
- Automatic Discharge Circuit: Ensures safe discharge of capacitive loads after testing.
- Lock Power-On Feature: Allows for extended test times without needing to hold the power button.
- Included Accessories: Comes with heavy-duty test leads, alligator clip test lead, 6 AA batteries, a hanging strap, and a hard carrying case.
Specifications
Specification | Details |
---|---|
Model No | 380320 |
Insulation Resistance Range | 0 to 100MΩ, 0 to 200MΩ, 0 to 400MΩ |
Insulation Test Voltage | 250V, 500V, 1000V |
AC Voltage Range | 0 to 600V |
Continuity | 3Ω |
Basic Accuracy | ±5% of scale (Insulation Resistance), ±3% of scale (Continuity) |
Dimensions | 7.9 × 3.6 × 2 inches (200 × 92 × 50mm) |
Weight | 1.2 lbs (546g) |
Safety Category | CAT III-1000V |
Warranty | 2 years |
