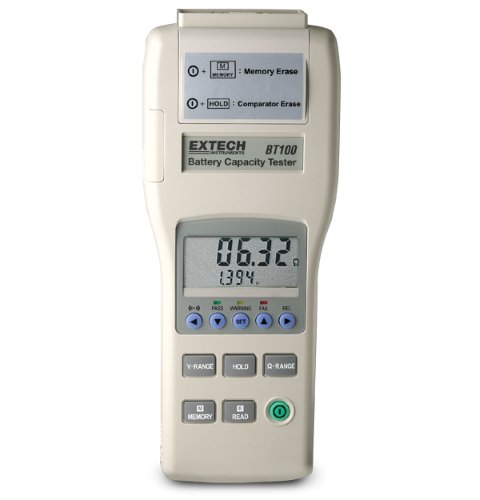

EXTECH BT100 Battery Capacity Tester
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech BT100 is a Battery Capacity Tester. Product can be used to test the condition of batteries quickly and easily. As an AC milliohm-meter, the tester measures DC voltage and AC resistance while the battery is in use, helping to save time on repetitive testing trials or large quantities of batteries.
Features
-
On-line testing without disconnecting battery
-
Built-in datalogger manually stores up to 999 sets and 9600 sets for continuous datalogging
-
Simultaneously measures DC Voltage and AC Milliohms
-
Auto power off
-
Includes Windows® 95/98/NT/2000/ME/XP compatible software for downloading readings to a PC
- Includes software with cable, Kelvin alligator clips, Kelvin test leads, 6 AA batteries
Specification
-
- Resistance
Range: 40mΩ, 400mΩ, 4Ω, 40Ω
Resolution: 10µΩ, 100µΩ, 1mΩ, 10mΩ
Accuracy: ±(1% reading ± 10d)
- Resistance
-
Voltage
Range: 4V, 40V
Resolution: 1mV, 10mV
Accuracy: ±(0.1% reading ±6d) - Max Input Voltage: 50VDC
- Manual Datalogging: 999 sets
- Continuous Datalogging: 9600 sets
- Power: 6 AA batteries
- Battery: life 7 hours
- Dimensions: 9.75 x 4 x 1.75" (250 x 100 x 45 mm)
- Weight: 17.5oz (500g)
