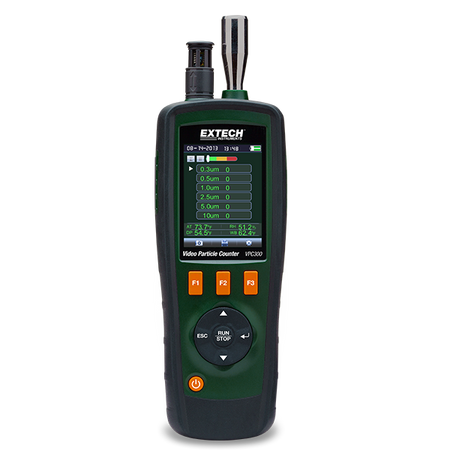

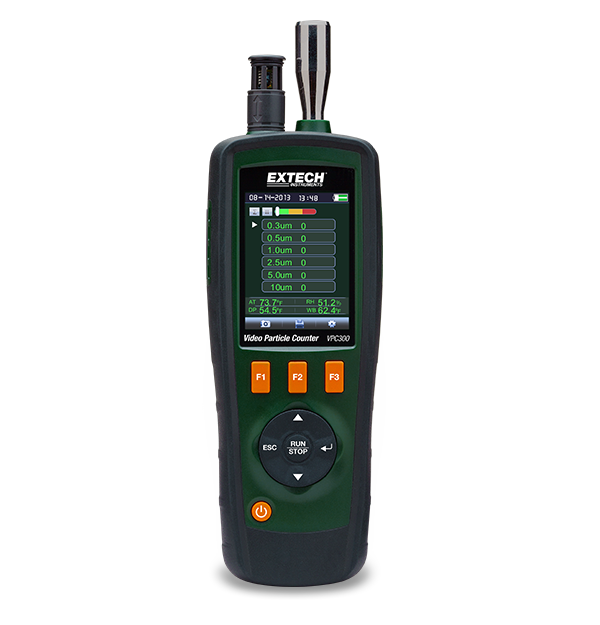

EXTECH CERTIFIED VIDEO PARTICLE COUNTER WITH BUILT-IN CAMERA (VPC300)
Regular price
6,300.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The EXTECH VPC300 is a sophisticated video particle counter equipped with a built-in camera, designed for measuring airborne particles and capturing visual data. It is ideal for applications in HVAC, indoor air quality (IAQ) assessments, and cleanroom monitoring.
Features
- 6-Channel Measurement: Simultaneously measures and displays six channels of particle sizes down to 0.3 µm, along with air temperature, humidity, dew point, and wet bulb readings.
- Built-in Camera: Features a 320x240-pixel camera that captures videos (3GP) and photos (JPEG), which can be stored on a MicroSD memory card.
- Data Storage: Capable of storing up to 5000 records, including date, time, counts, humidity, temperature, sample volumes, and location labels, as well as 20 minutes of video.
- User-Friendly Software: Includes software for generating reports that combine videos, photos, and data points.
- Calibration: Comes with a NIST-traceable calibration certificate, ensuring accuracy and reliability.
Specifications
Specification | Details |
---|---|
Model No | VPC300 |
Particle Size Measurement | 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm |
Air Temperature Range | -25ºC to 60ºC (-14ºF to 140ºF) |
Relative Humidity Range | 0 to 100% |
Max Flow Rate | 0.1 ft³ (2.83 L/min) |
Dimensions | 240 × 75 × 57 mm (9.4 × 3.0 × 2.2 in) |
Weight | 1.26 lbs (570 g) |
Warranty | 2 years |
