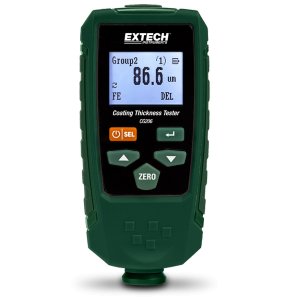

Extech CG206 Coating Thickness Tester

Only 1 left
SKU: CG206
850.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Dual technology provides automatic recognition for ferrous and non-ferrous substrates without having you guess the material. Allows for quick, one-handed operation, non- destructive measurement of the coating thickness on various surfaces.

Features

  •  Smart automatic substrate recognition

  • Magnetic induction for ferrous substrates

  • Eddy current measurement for non-ferrous substrates

  • Easy-to use menu system

  • Two working modes: Direct and Group

  • Memory stores 1500 readings (30 Group readings)

  • ZERO point calibration for optimum precision

  • 8 level adjustable backlight

  • USB interface includes software

  • Low battery indicator

  • Complete with two AAA batteries, USB cable, software, Calibration Iron, Calibration Aluminum, Precision Standards, and pouch





Specification

  • Sensor Probe: Ferrous / Non-Ferrous

  • Measuring Range:
    Ferrous: 0 to 1350μm (0 to 53mils)
    Non-Ferrous: 0 to 1350μm (0 to 53mils)

  • Basic Accuracy ±2.5%

  • Resolution 0.1μm (0.004mils)

  • Minimum Curvature Radius:
    Ferrous:: 1.5mm (59.06mils)
    Non-Ferrous:: 3mm (118.1mils)

  • Minimum Diameter:
    Ferrous: 7mm (275.6mils)
    Non-Ferrous: 5mm (196.9mils)

  • Minimum Thickness:
    Ferrous: 0.5mm (19.69mils)
    Non-Ferrous: 0.3mm (11.81mils)

  • Dimensions: 4.5 x 2.1 x 1.1" (113.5 x 54 x 27mm)

  • Weight: 3.9oz (110g)



Downloads

CG206 Datasheet
