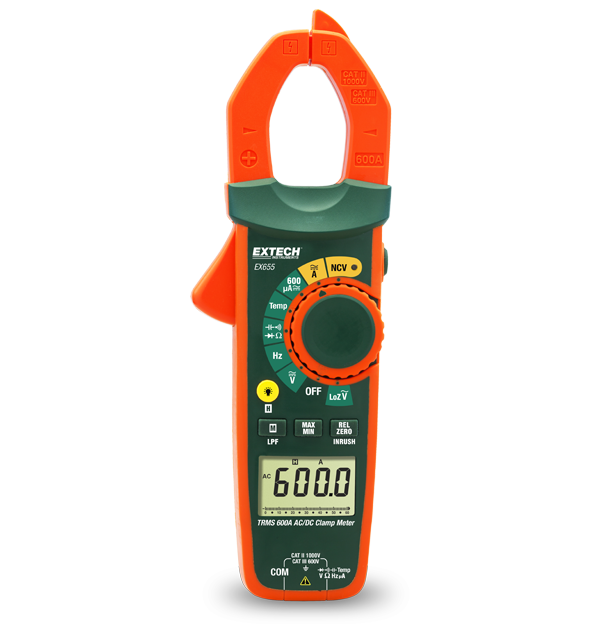

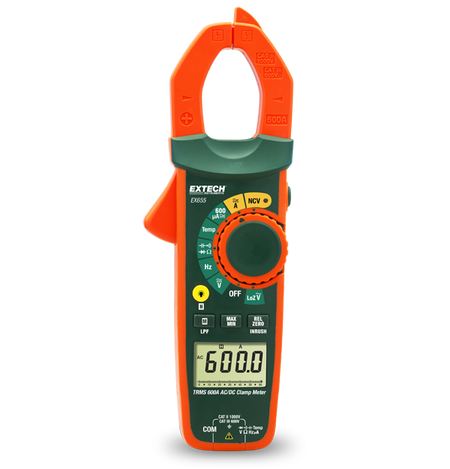

EXTECH CLAMP METER (EX655)
Regular price
550.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The EXTECH EX655 is a versatile 600A True RMS AC/DC Clamp Meter designed for a wide range of electrical measurements. It is suitable for professionals in electrical and HVAC fields, providing accurate readings for various applications.
Features
-
Measurement Capabilities:
- Measures AC/DC current up to 600A.
- Measures AC/DC voltage up to 1000V.
- Includes resistance, capacitance, frequency, and temperature measurements.
-
Display:
- Features a 6000 count backlit LCD display for easy reading in low light conditions.
-
Data Functions:
- Data hold, min/max, and relative functions for enhanced usability.
-
Non-Contact Voltage (NCV) Detector:
- Detects voltage without direct contact, enhancing safety.
-
Additional Functions:
- Inrush mode for capturing current surges, low pass filter for accurate measurements, and a built-in LED worklight.
Specifications
| Specification | Details |
|---|---|
| Model No | EX655 |
| AC Current | 60A, 600A |
| AC Voltage | 750V |
| DC Voltage | 1000V |
| Resistance | 60MΩ |
| Capacitance | 60mF |
| Frequency | 10Hz to 1MHz |
| Temperature Range | -40 to 1832°F (-40 to 1000°C) |
| Jaw Size | 1.18" (30mm) |
| Weight | 9.4 oz (265g) |
| Power Supply | 3 × AAA batteries |
| Safety Category | CAT III - 600V, CAT II - 1000V |
| Warranty | 3 years |
