EXTECH CLAMP-ON GROUND RESISTANCE TESTER (382357)

Out of stock
SKU: 382357
Regular price 4,800.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

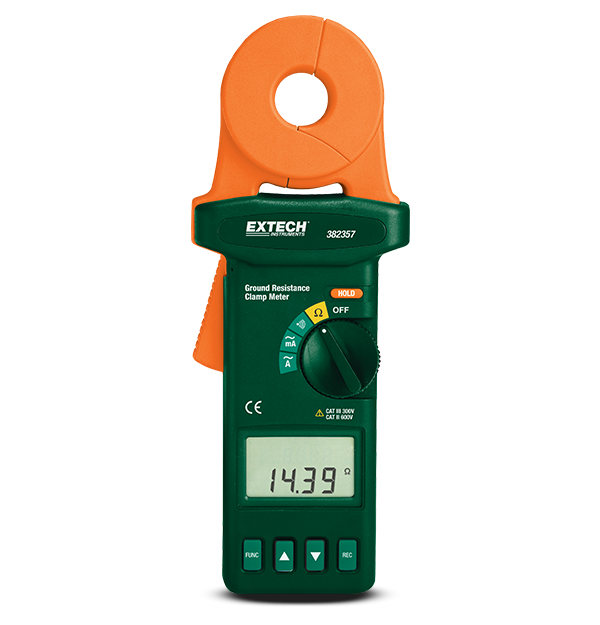

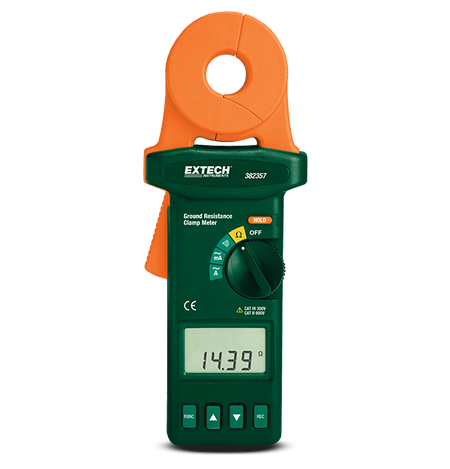

The EXTECH 382357 is a Clamp-On Ground Resistance Tester that allows for non-contact measurements of ground conductors. This device is essential for professionals who need to measure ground resistance without the use of auxiliary spikes.

Features
  • Measurement Range: Capable of measuring ground resistances from 0.03 to 1500 Ohms.
  • True RMS AC Leakage Current: Measures leakage current from 0.2mA to 30A with a resolution of 1.000mA.
  • Programmable Datalogging: Stores up to 116 data points for later analysis.
  • Audible Alarm: Alerts users when measurements exceed user-programmable ground limits.
  • Automatic Self Calibration: Ensures accurate measurements throughout the device's lifespan.
  • Electrical Noise Detection: Built-in feature to detect electrical noise that may affect readings.
  • Display: Features a 9999 count LCD display for precise measurements, especially at low resistances.
Specifications
Specification Details
Model No 382357
Ground Resistance Range 0.03 to 1500 Ohms
AC Leakage Current Range 0.2mA to 30A
Datalogging Capacity 116 data points
Display 9999 count LCD
Dimensions 10.2 x 4.4 x 1.9 inches
Weight 24.7 oz (700g)
Power Supply 1 x 9V battery
