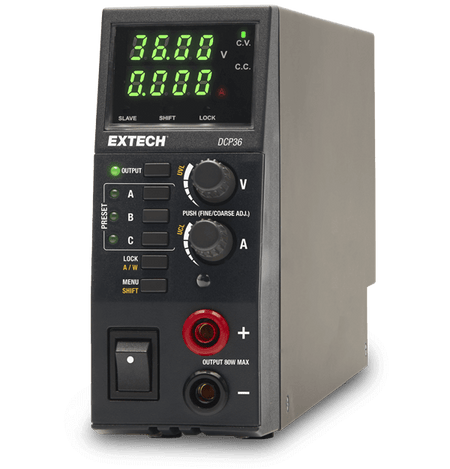

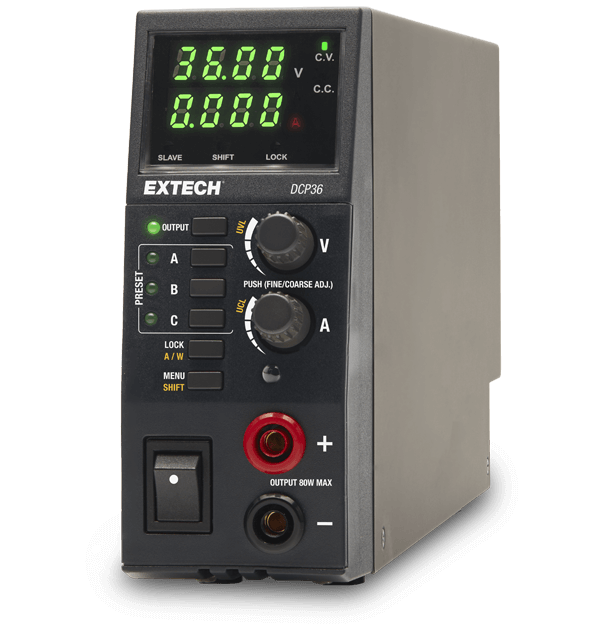

EXTECH DCP36 Power Supply
Regular price
1,450.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The EXTECH DCP36 is an 80W switching mode DC power supply that features autoranging voltage and current output. This compact and lightweight unit is ideal for use in tight workspaces and offers portability for various applications.
Features
- Output Power: 80W maximum output power with autoranging voltage and current.
- Output Voltage Range: 0.5 to 36V.
- Output Current Range: 0 to 5A.
- Display: Dual 4-digit LED displays with 10mV and 10mA resolution.
- Programmable Presets: 3 user-programmable presets for frequently used settings.
- Remote Sensing: Ensures accurate applied voltage at the load point.
- Front/Rear Output Terminals: Provides flexibility in connections.
- Compact Design: Slim tower housing suitable for limited space.
Specifications
| Specification | Details |
|---|---|
| Line Current Regulation | ≤10mA |
| Line Voltage Regulation | ≤4mV |
| Load Current Regulation | ≤10mA |
| Load Voltage Regulation | ≤30mV |
| Output Current Basic Accuracy | ±(0.5% + 5 counts) |
| Output Voltage Basic Accuracy | ±(0.5% + 5 counts) |
| Ripple and Noise | ≤35mVp-p |
| Dimensions | 13 × 5 × 2 inches (330 × 127 × 53.5 mm) |
| Weight | 4.2 lbs (1.9 kg) |
| Warranty | 2 years |
