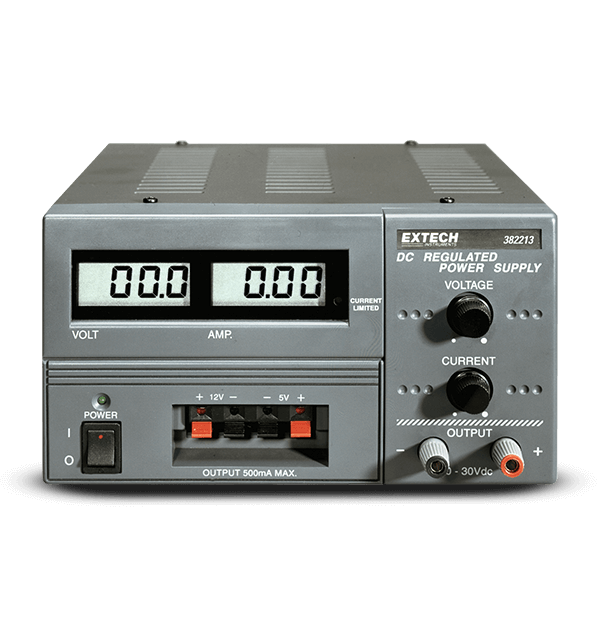

EXTECH DIGITAL TRIPLE OUTPUT DC POWER 115/220VAC (382213)
Regular price
900.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech 382213 is a digital triple output DC power supply designed for a variety of applications, including bench testing, field service, and telecommunications. It provides reliable and adjustable power while ensuring protection for both itself and the devices under test.
Features
-
Output Options:
- Adjustable output: 0 to 30 Volts, 0 to 3 Amps.
- Fixed outputs: 5V (0.5A continuous, 1A max) and 12V (0.5A continuous, 1A max).
- Protection Features: Overload and short circuit protection.
- Display: Digital LCD display for easy monitoring of output settings.
- Regulation: Line voltage regulation of <0.05% + 10mV and load voltage regulation of <0.05% + 10mV.
- Ripple and Noise: Less than 5mV.
- Power Supply: Operates on 110/220VAC at 50/60Hz.
- Dimensions: 6 × 5.6 × 9.5 inches (152 × 142 × 242 mm).
- Weight: 11 lbs (5 kg).
- Warranty: 2 years.
Specifications
| Specification | Details |
|---|---|
| Model | 382213 |
| Adjustable Output Voltage | 0 to 30V DC |
| Adjustable Output Current | 0 to 3A |
| Fixed Output 1 | 5V / 0.5A (cont.), 1A (max) |
| Fixed Output 2 | 12V / 0.5A (cont.), 1A (max) |
| Line Voltage Regulation | <0.05% + 10mV |
| Load Voltage Regulation | <0.05% + 10mV |
| Ripple and Noise | <5mV |
| Power Supply | 110/220VAC 50/60Hz |
| Dimensions | 6 × 5.6 × 9.5 inches |
| Weight | 11 lbs (5 kg) |
| Warranty | 2 years |
