EXTECH Digital Ultrasonic Thickness Gauge/Datalogger (TKG150)
Regular price
9,000.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

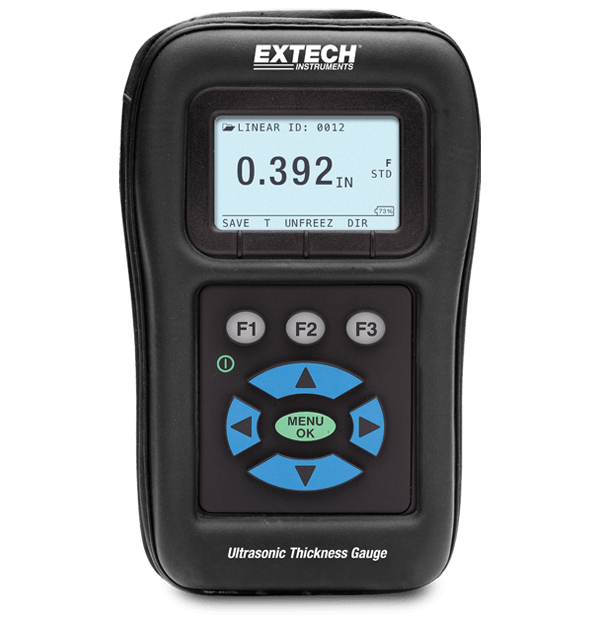

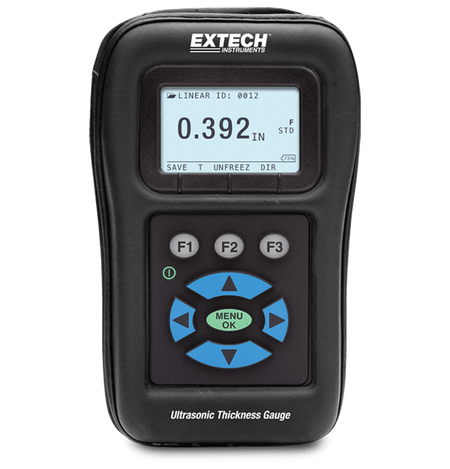

The EXTECH TKG150 is a compact and rugged digital ultrasonic thickness gauge designed for non-destructive thickness measurements. It is particularly effective for measuring the thickness of steel structures and other materials.
Features
-
Measurement Range:
- 5 MHz probe: 0.040 to 20 inches (1.0 to 508 mm)
- 10 MHz probe (optional): 0.030 to 2 inches (0.76 to 50.8 mm)
- Memory Capacity: Stores up to 50,000 readings (expandable to 100,000) and 5,000 waveforms.
- Display Options: Features a B-scan mode that visually represents the cross-section of the inspection area.
- Echo to Echo Measurement: Measures the metal thickness only, unaffected by paint and coatings.
- User-Friendly Interface: Includes an audible alarm, flashing display, and vibration feedback for alerts.
- Durability: IP54 rated for dust and water resistance, making it suitable for field use.
Specifications
| Specification | Details |
|---|---|
| Model No | TKG150 |
| Measurement Range | 5 MHz: 0.040 to 20" (1.0 to 508 mm); 10 MHz: 0.030" to 2" (0.76 to 50.8 mm) |
| Memory | 50,000 readings (expandable to 100,000) |
| Certifications | CE |
| IP Rating | IP54 |
| Power Supply | 2 × AA (1.5V) batteries |
| Warranty | 2 years |
