Home » EXTECH DUAL INPUT TRUE RMS AC VOLTAGE/CURRENT DATALOGGER (DL160)
EXTECH

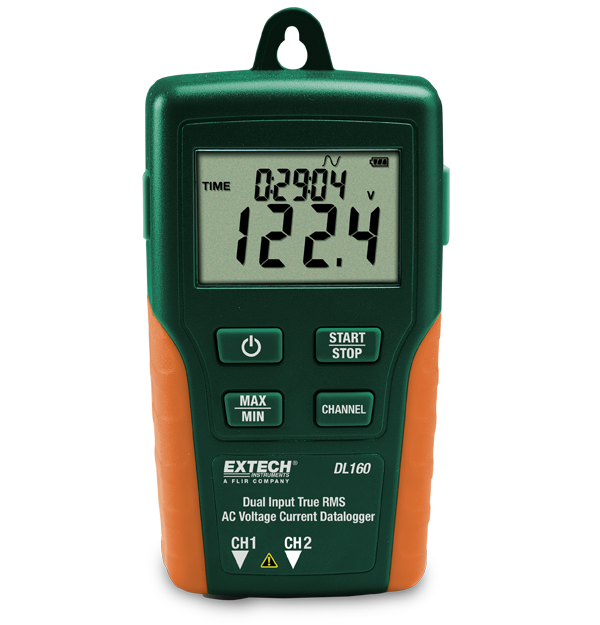

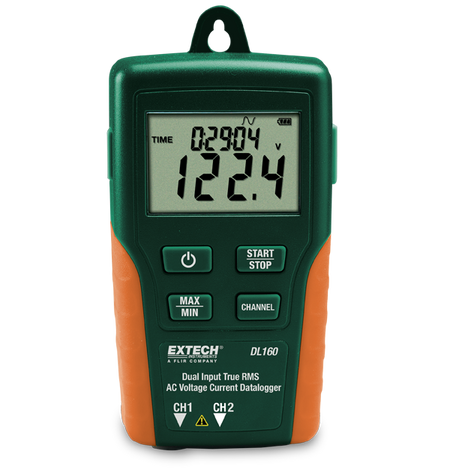

EXTECH DUAL INPUT TRUE RMS AC VOLTAGE/CURRENT DATALOGGER (DL160)

Only 1 left
SKU: DL160
1,400.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The EXTECH DL160 is a dual input True RMS AC voltage/current datalogger that allows users to simultaneously measure and log two channels of AC voltage or current. It is designed for a wide range of applications, including electrical testing and monitoring.

Features
  • Dual Input Capability: Measure two AC voltage inputs, two AC current inputs, or one of each simultaneously.
  • High Memory Capacity: Stores up to 262,000 readings for a single channel or 131,000 readings for dual channels.
  • User Programmable Sample Rate: Sample rates can be set from 1 second to 24 hours.
  • LCD Display: Shows time/date, current readings, and min/max values.
  • Data Downloading: Readings can be downloaded to a PC via USB for analysis using included software or exported to a spreadsheet.
  • Complete Kit: Comes with current clamps, test leads, alligator clips, software, USB cable, AC adapter, and batteries.
Specifications
Specification Details
Model No DL160
AC Voltage Range 10 to 600V
AC Current Range 10 to 200A
Basic Accuracy ±(2% of reading ± 1V for voltage; ±(2% of reading ± 1A for current)
Maximum Resolution 0.1V for voltage; 0.1A for current
Memory 262,000 points (single channel), 131,000 (dual channels)
PC Interface USB
Dimensions 4.5 × 2.5 × 1.3" (114 × 63 × 34mm)
Weight 8.7 oz (248g)
Warranty 2 years
