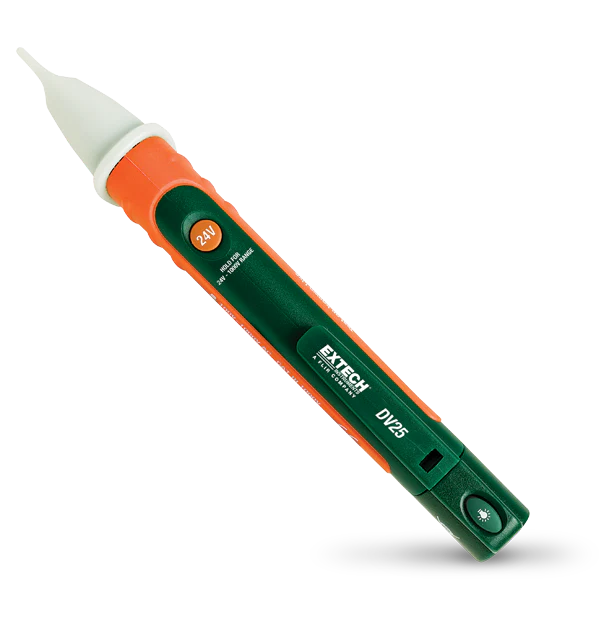

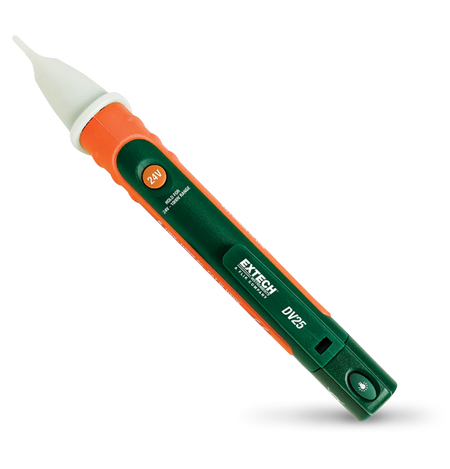

Extech DV25 Dual-Range AC Voltage Detector with Flashlight
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech DV25 is a Dual-Range NCV Detector that combines two models into one. The low range measures down to 24 Volt and the high range measures up to 1000 Volt. Includes audible and visual indication, rugged double molded housing, and a bright built-in LED flashlight. Complete with 2 x AAA batteries.
Features
• Non-contact detection of AC Voltage in 2 ranges:
24 to 1000VAC
100 to 1000VAC
• CAT IV-1000V safety rating
• For use on 50/60Hz circuits
• Rugged double-molded housing
• Tip fits into outlets or against wire insulation testing
• Audible and Visual voltage indication
• Built-in bright flashlight with On/Off button
• Compact size with pocket clip
• Dimensions: 6.25 x 1" (159 x 25mm)
Weight: 1.48oz (42g)
• Complete with two AAA batteries
Specifications
| Specification | Value |
|---|---|
| Audible/Visible Indication | Beeper, flashing LED |
| Built-In Flashlight | Yes |
| Detection Distance | <0.2" |
| Frequency Bandwidth | 50/60 Hz |
| Voltage Detection (Non-Contact) | 24V to 1000V AC; 100V to 1000V AC |
| Certifications | UL |
| Dimensions | 6.25 × 1" (159 × 25 mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CAT IV - 1000V |
| Warranty | 2 years |
| Weight | 1.5 oz (42 g) |
