EXTECH DV690 High Voltage Detector

Out of stock
SKU: DV690
Regular price 1,000.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

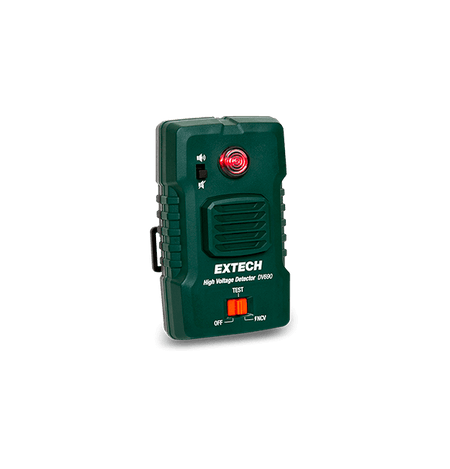

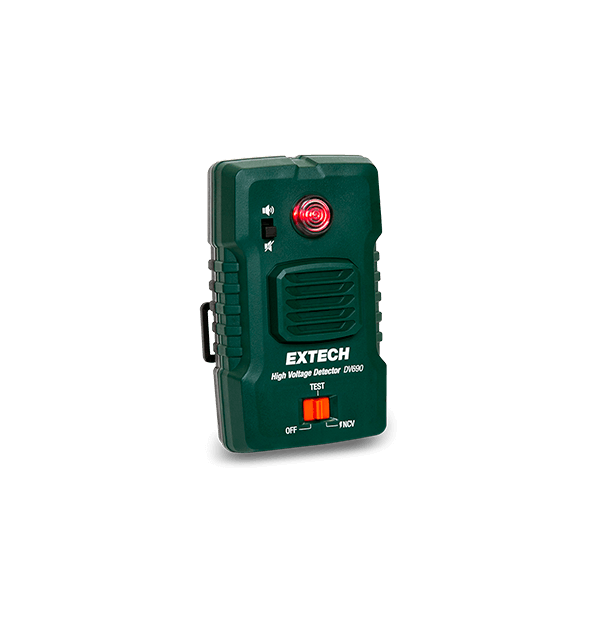

The EXTECH DV690 is a rugged and reliable non-contact high voltage detector designed to quickly and safely detect AC voltages up to 69 kV. It is particularly useful for professionals working in high-voltage environments, such as electric power utilities, telecommunications, and public safety.

Features
  • Voltage Detection: Detects voltages from 100 V AC to 69 kV AC.
  • Frequency Range: Operates within a frequency range of 50 to 60 Hz.
  • Audible and Visual Alarms: Equipped with a loud buzzer (106 dB) and a bright red LED alarm to alert users of high voltage presence.
  • Durable Design: Features an IP54 rating for dust and water resistance, and is drop tested to withstand falls from 4 feet (1.2 m).
  • Multiple Mounting Options: Can be mounted in five different ways for hands-free operation, including lanyard, clip, and arm strap.
  • Battery Operated: Powered by three AA batteries, making it portable and easy to use in the field.
Specifications
Specification Details
Model No DV690
Voltage Detection Range 100 V AC to 69 kV AC
Frequency Range 50/60 Hz
Audible Indication >106 dB at 0 cm
Visual Indication Flashing LED (507 lux)
IP Rating IP54
Power Supply 3 × AA (1.5V) batteries
Dimensions 5.24 × 3.03 × 2.05 in (133 × 77 × 52 mm)
Weight 0.49 lb (220 g)
Warranty 2 years
