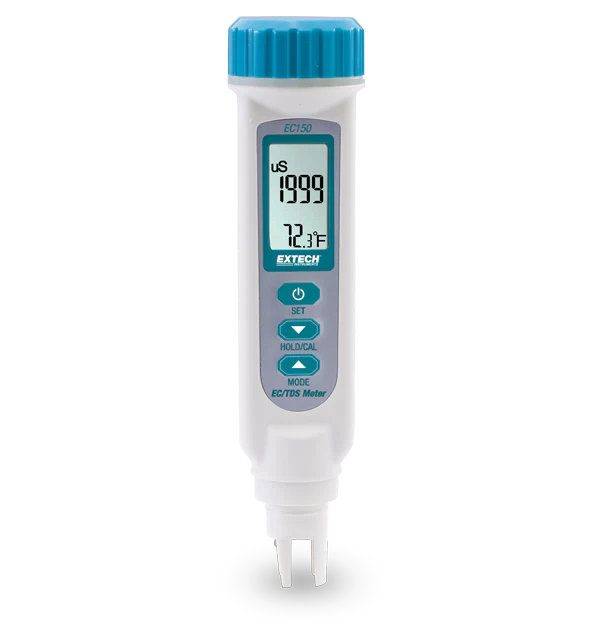

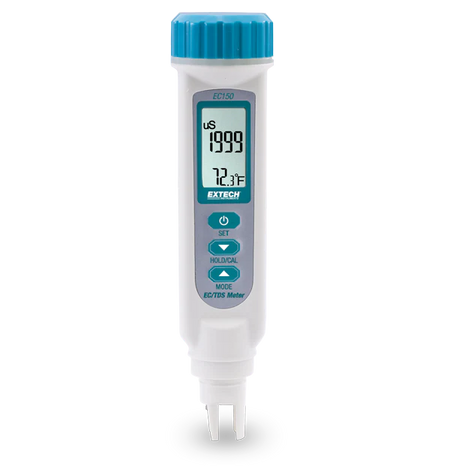

Extech EC150 Conductivity/TDS/Temperature Meter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech EC150 is a Conductivity/TDS/Temperature Meter with high-accuracy multi-ranging sensor. It features auto power off with disable, adjustable conductivity to TDS ratio factor from 0.4 to 1.0, data hold and low battery indication. The waterproof design withstands wet environment and meets IP65 standard. Includes meter, protective sensor cap, and four LR44 button batteries.
Features
• Units of measure include μS/cm, mS/cm,
ppm, ppt, °F, and °C
• Large 3-1/2 digit (2000 count) LCD display
• Data Hold and low battery indication
• Auto Power off with disable
• Adjustable Automatic Temperature Compensation
• Waterproof design to withstand wet environment –
meets IP65 standard
• Includes meter, protective sensor cap, and four
LR44 button batteries. Order Conductivity standards
separately (required for calibration)
Specifications
| Specification | Value |
|---|---|
| Conductivity | 0 to 1999 µS/cm, 0.00 to 19.99 mS/cm |
| Conductivity Basic Accuracy | ±1% full scale |
| Conductivity Max Resolution | 1 µS/cm, 0.01 mS/cm |
| TDS (Total Dissolved Solids) | 0 to 1999 ppm, 0 to 19.99 ppt |
| TDS Basic Accuracy | ±1% full scale |
| TDS Max Resolution | 1 ppm, 0.01 ppt |
| Temperature (Contact) | 32° to 122°F (0 to 50°C) |
| Temperature (Contact) Basic Accuracy | ±0.9°F / ±1°C |
| Temperature (Contact) Max Resolution | 0.1°F / °C |
| Certifications | CE |
| Dimensions | 6.5 × 1.4 × 1.3" (165 × 35 × 32 mm) |
| Power | 4 × LR44 (1.5 V) button batteries |
| Warranty | 2 years |
| Weight | 3.8 oz (110 g) |
